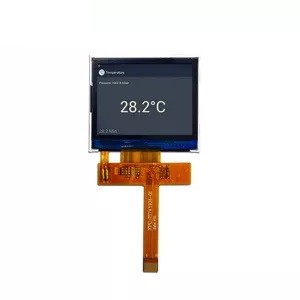

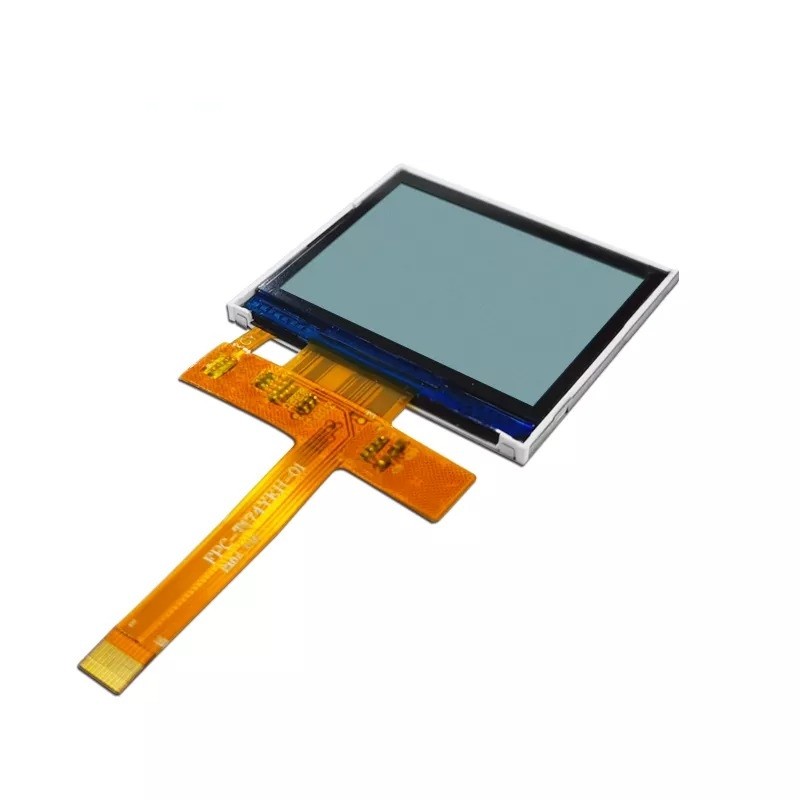

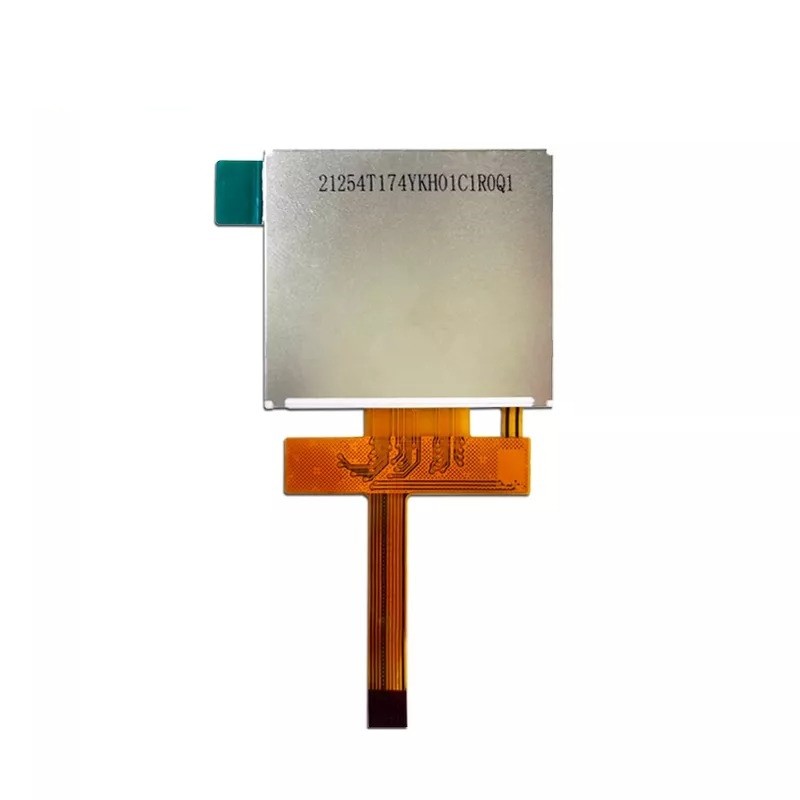

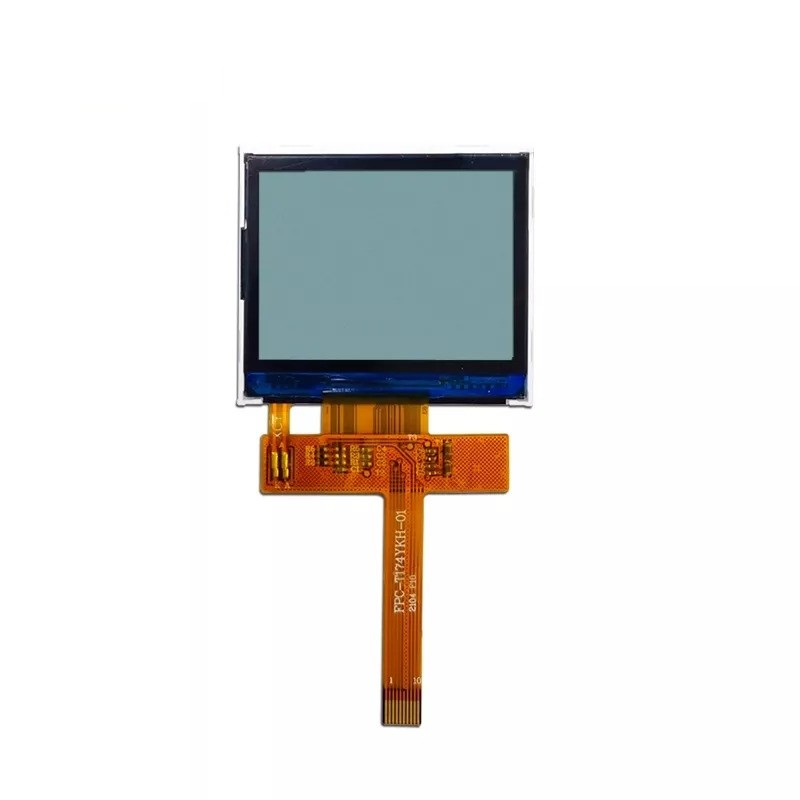

首页 产品展示 0.9英寸-1.8英寸 TFT LCD RG174YKH-01 1.74英寸 TFT LCD 240*128
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 1.77 | inch | |
| Resolution | 240*180 | dots | |
| Pixel pitch | 0.147(H)*0.147(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 8:00 | o'clock | |
| Gray Scale Inversion Direction | - | o'clock | |
| Luminance | 150 | cd/m2 | |
|

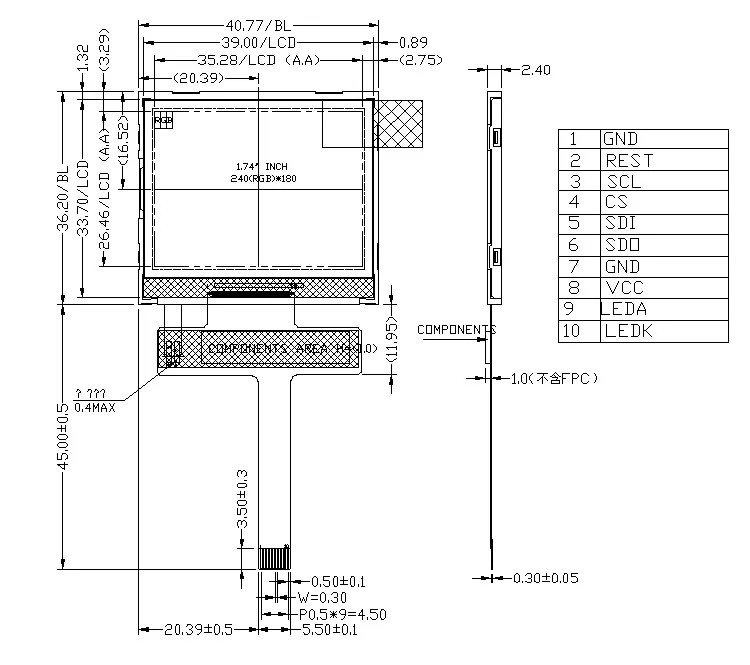

Mechanical Characteristics |
LCM (W * H * D) | 40.77*36.20*2.40 | mm |
| Active Area (W * H ) | 35.28*26.46 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 3P-LED | pcs | |
| Operation temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
|
Electrical Characteristics |
Interface | 4 wire SPI | - |
| LCM Power Supply | 3.3 | V | |
| LED Power Supply | 3.0 | V | |
| Color Depth | 262K | - | |
| LCM Driver IC | HX8340B | - | |
