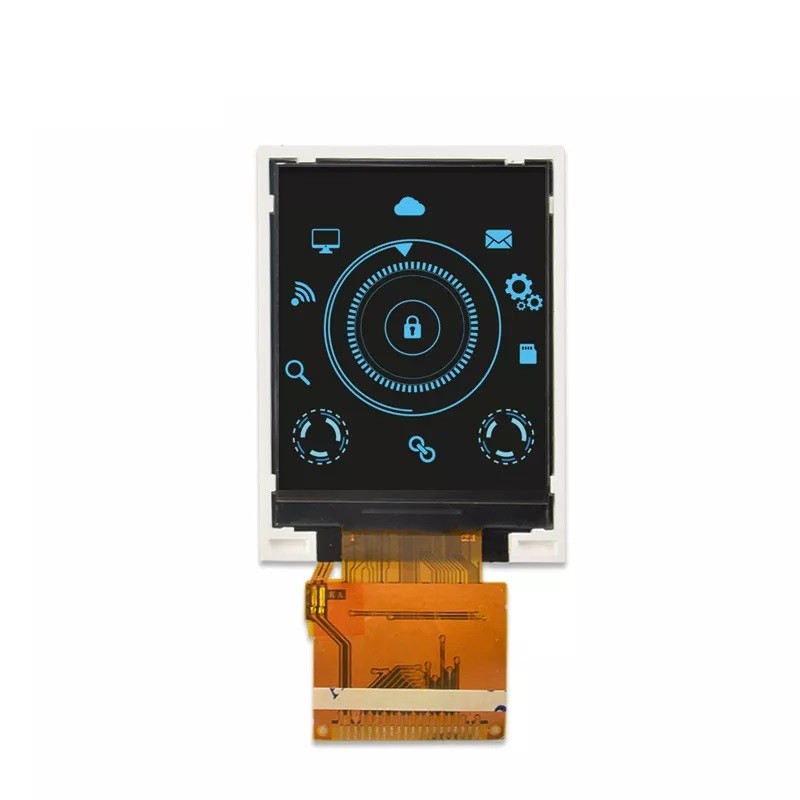

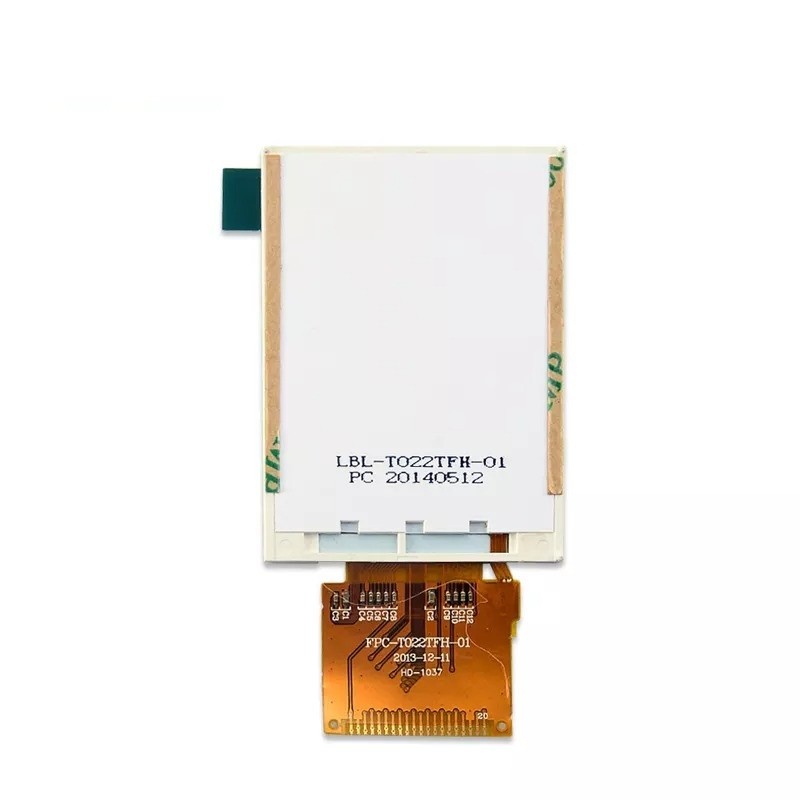

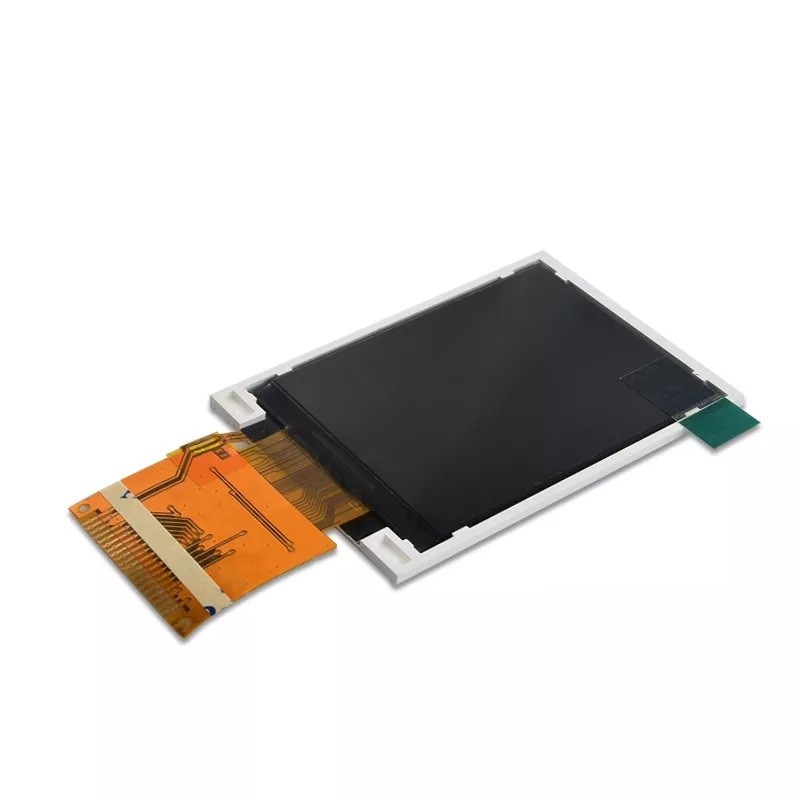

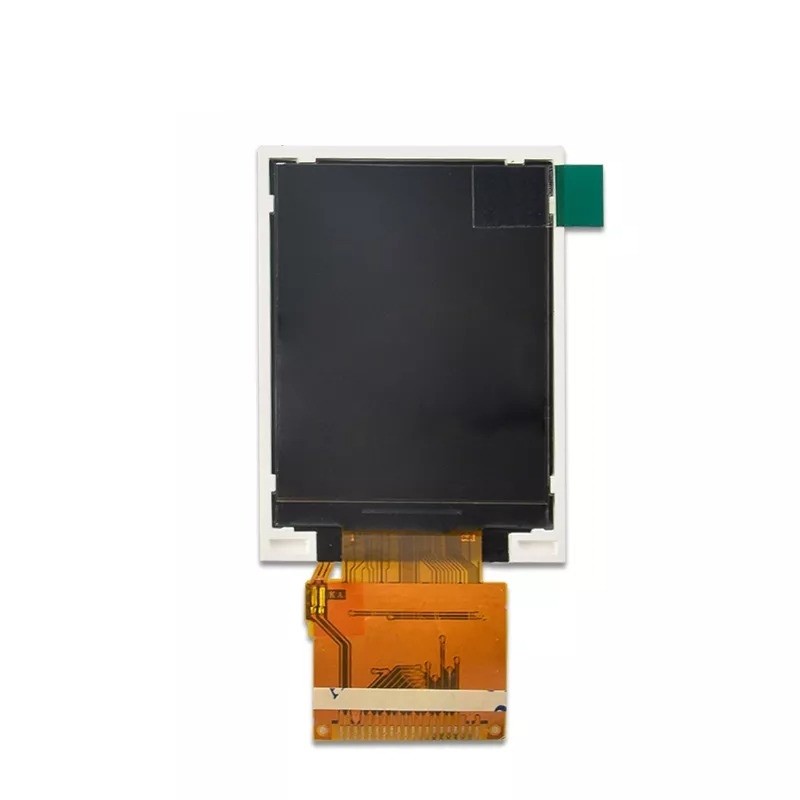

首页 产品展示 2英寸-2.8英寸 TFT LCD 2.2英寸 LCD RG022TFH-01 2.2英寸 176x220 TFT LCD MCU接口
|
Item |
Contents |
Unit |
|---|---|---|
|
LCD Type |
TFT |
- |
|
Display color |
65K |
|
|
Viewing Direction |
6 |
O’Clock |
|
Gray scale inversion direction |
12 |
O’Clock |
|
Operating temperature |
-20~+70 |
℃ |
|
Storage temperature |
-30~+80 |
℃ |
|
Module size |
42.30x57.50x2.45 |
mm |
|
Active Area(W×H) |
34.85X43.56 |
mm |
|
Number of Dots |
176×220 |
dots |
|
Controller |
HX8340B |
- |
|
Power Supply Voltage |
2.8 |
V |
|
Backlight |
4S-LEDs (white) |
pcs |
|
Weight |
--- |
g |
|
Interface |
8BIT CPU |
- |
