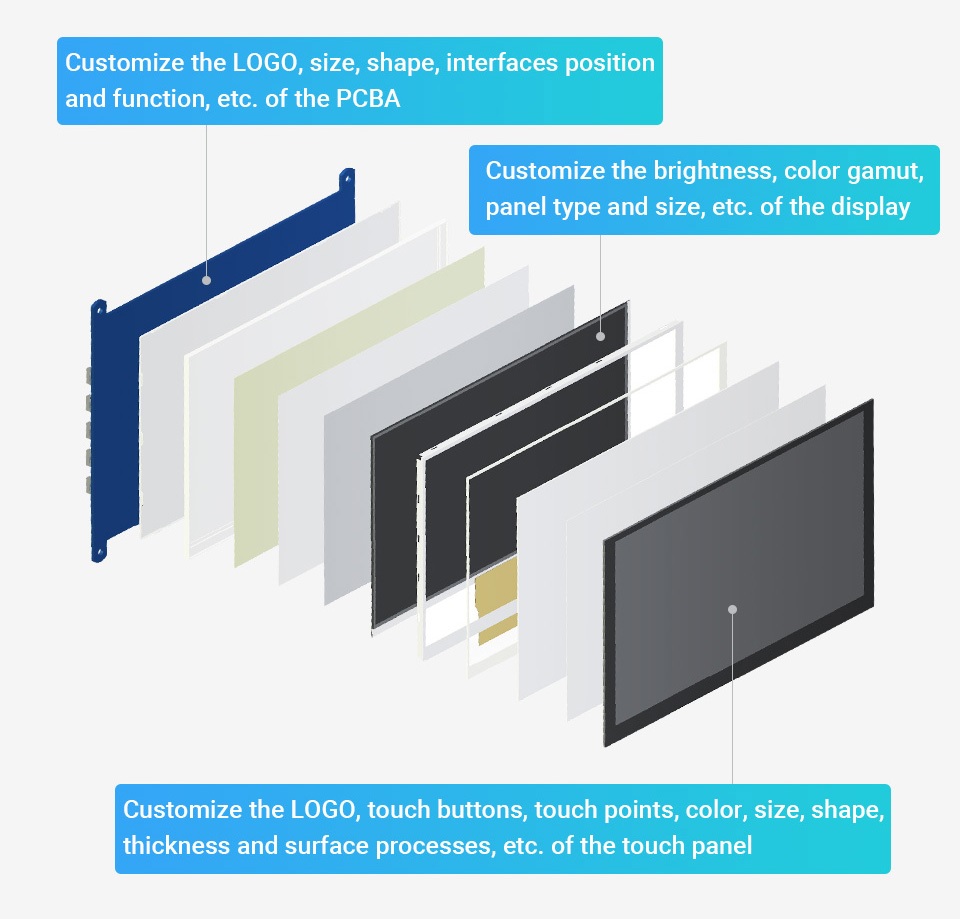

HDMI LCD Module: Customizable 4.3-Inch Display with Touch Option
LCD Parameter
Item | Contents | Unit |
Active Area(W×H) | 95.04X53.86 | mm |
Backlight | 5S2P-LEDs (white) | pcs |
Display color | 16.7M | |
Driver IC | SC72543 | |
Interface | HDMI | |
LCD Type | TFT | - |
Module size | Refer to outline drawing | mm |
Number of Dots | 800x480 | dots |
Operating temperature | -20~+70 | ℃ |
Outline Dimensions | Refer to outline drawing | |
Power Supply Voltage | 3.3 | V |
Storage temperature | -30~+80 | ℃ |
Viewing Direction | ALL | O’Clock |
CTP Parameter
Item | Contents | Unit |
Accuracy | 6 | mm |
Cover View Area | 95.64(H)X54.46V) | |
CTP Controller | FT5446DQS-003 | |
CTP Resolution | 800*480 | dots |
Interface Mode | USB | - |
Outline Size | 104.84(H)X66.8(V)X1.75(T) | mm |
Power Supply Voltage | 3.3 | V |
Surface hardness | >=6H | |
Touch Mode | 10 Human fingers multi-touch | |
Transparency | >=85% |
