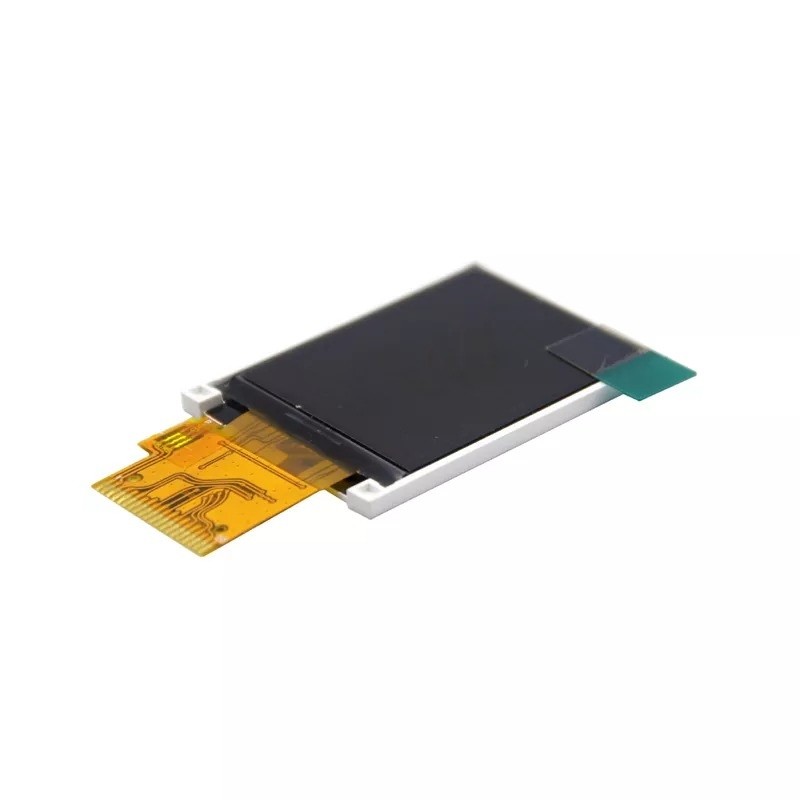

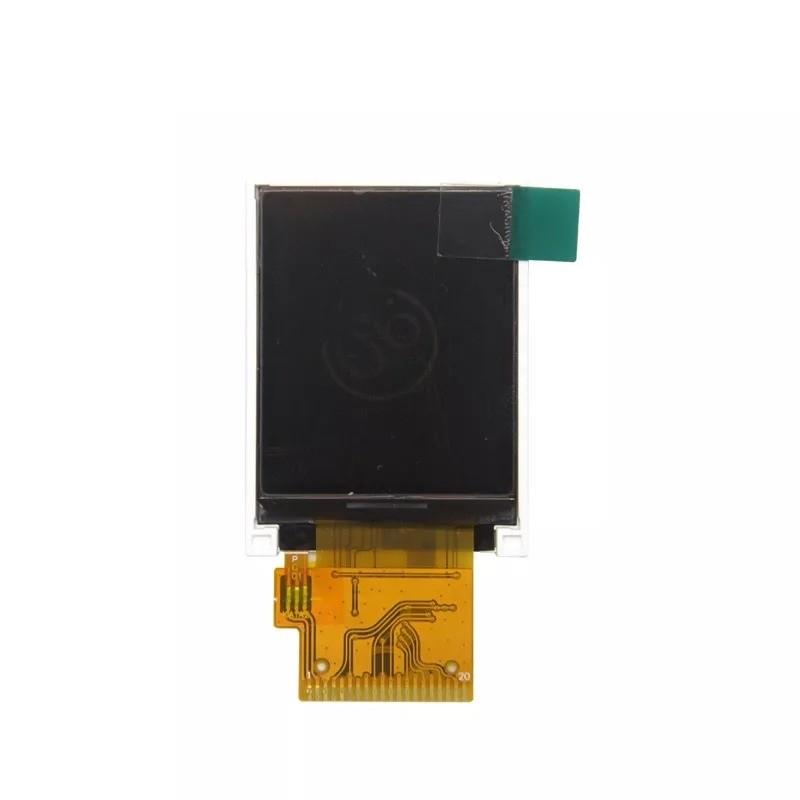

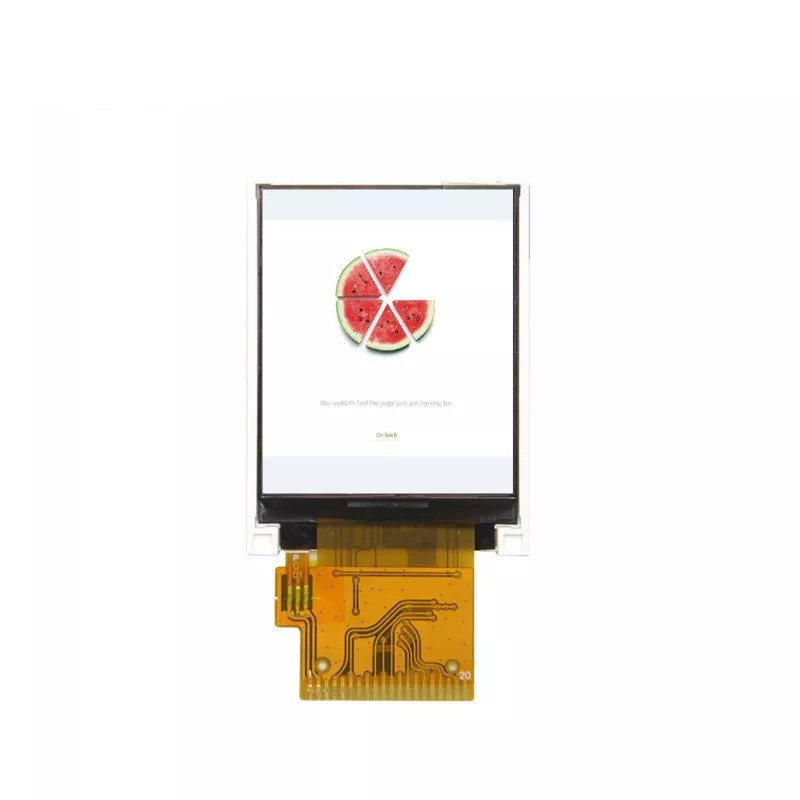

首页 产品展示 0.9英寸-1.8英寸 TFT LCD 1.77英寸 LCD RG177SSI-05 1.77英寸 128x160 TFT LCD ILI91
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 1.77 | inch |
| Resolution | 128*160 | dots |
| Pixel pitch | 0.219(H)*0.219(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 220 | cd/m2 |
| LCM (W * H * D) | 34.70*46.70*2.60 | mm |
| Active Area (W * H ) | 28.03*35.04 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 2-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU-8bit/20PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9163V | - |
