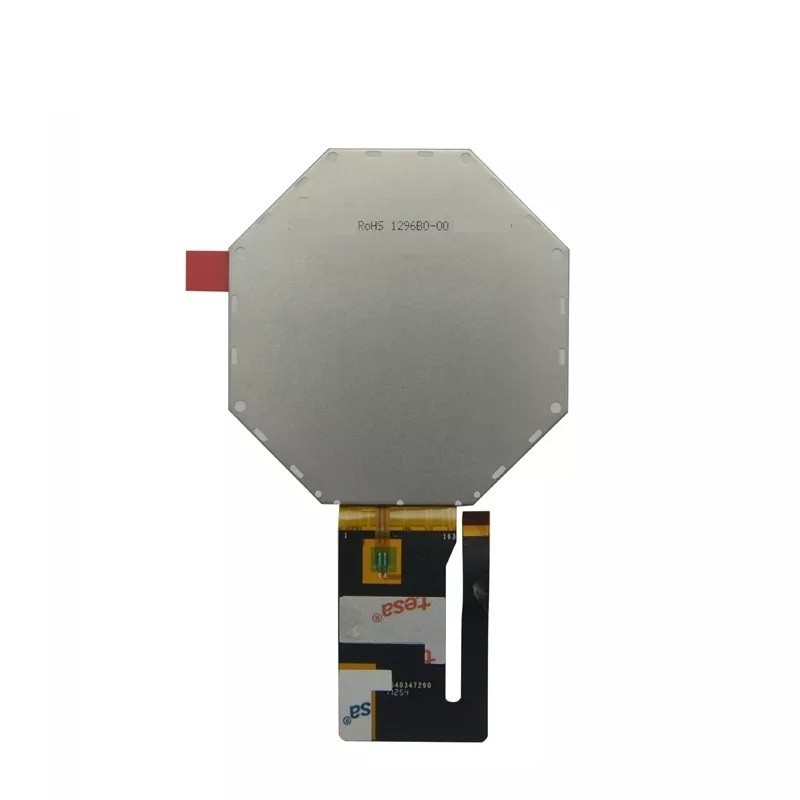

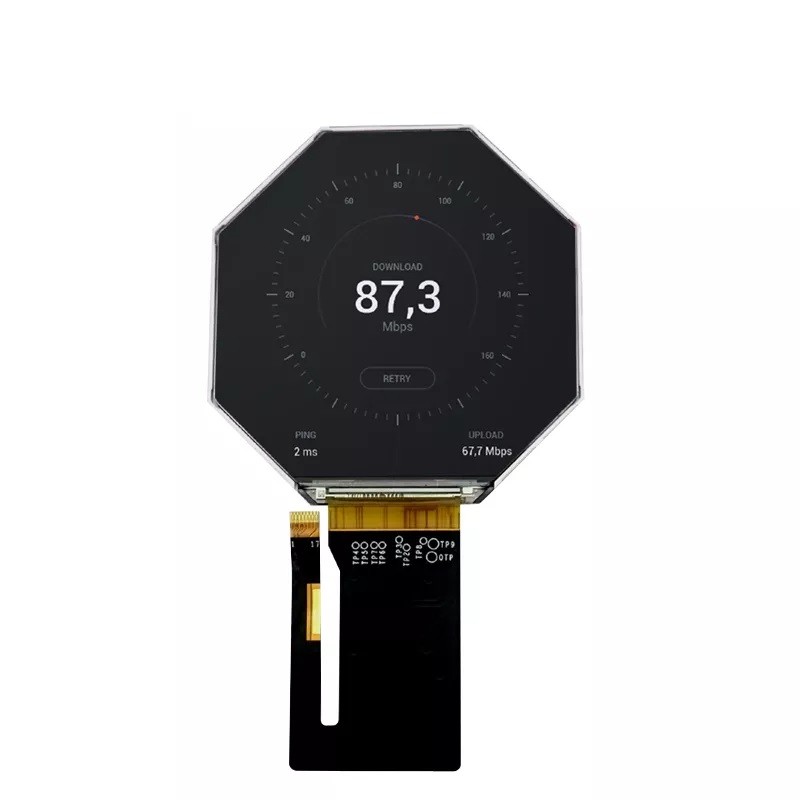

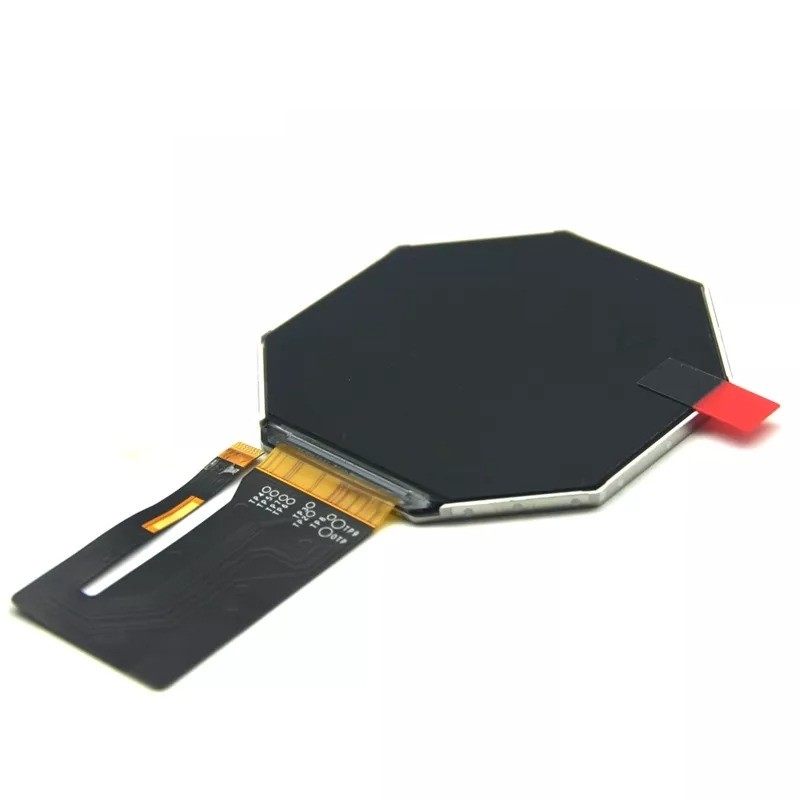

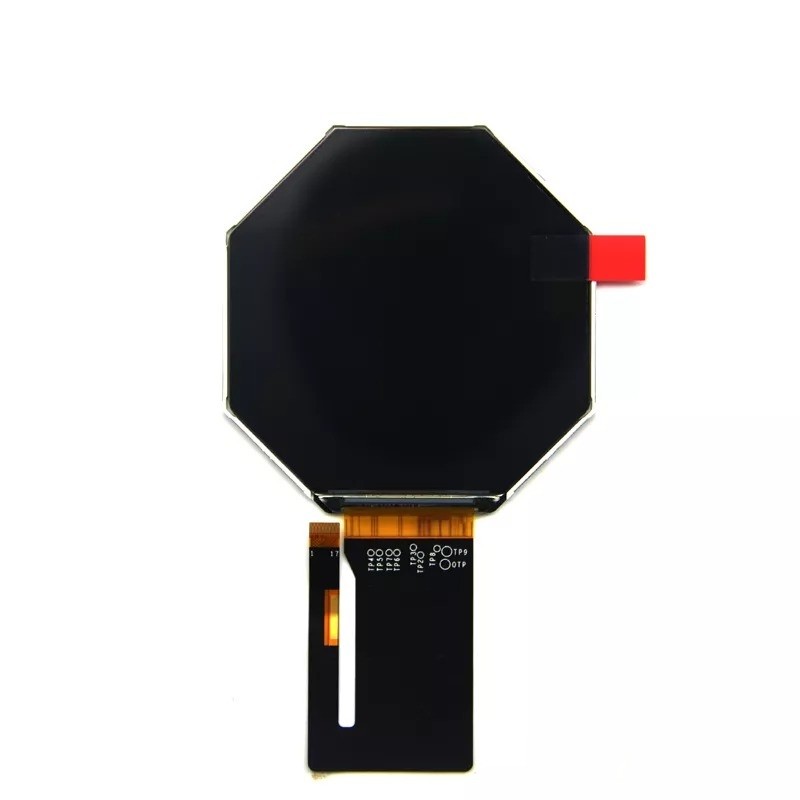

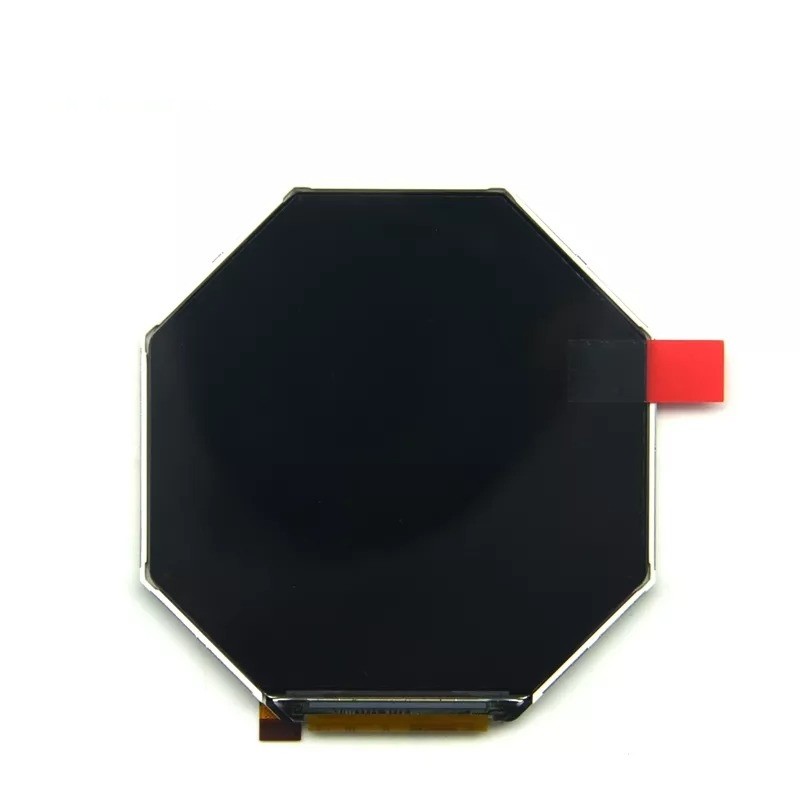

首页 产品展示 3英寸-4英寸 TFT LCD 3.4英寸 LCD RG334TOS-01 3.34英寸 320x320 高亮圆形屏 TFT LCD
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 3.34 | inch |
| Resolution | 320*320 | dots |
| Pixel pitch | 0.185(H)*0.185(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 650 | cd/m2 |
| LCM (W * H * D) | 66.20*69.30*2.66 | mm |
| Active Area (W * H ) | 60.00*60.00 | mm |
| With /Without TP | With TP | - |
| LED Numbers | 6S-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MIPI/17PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 18.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ST7796SI | - |
