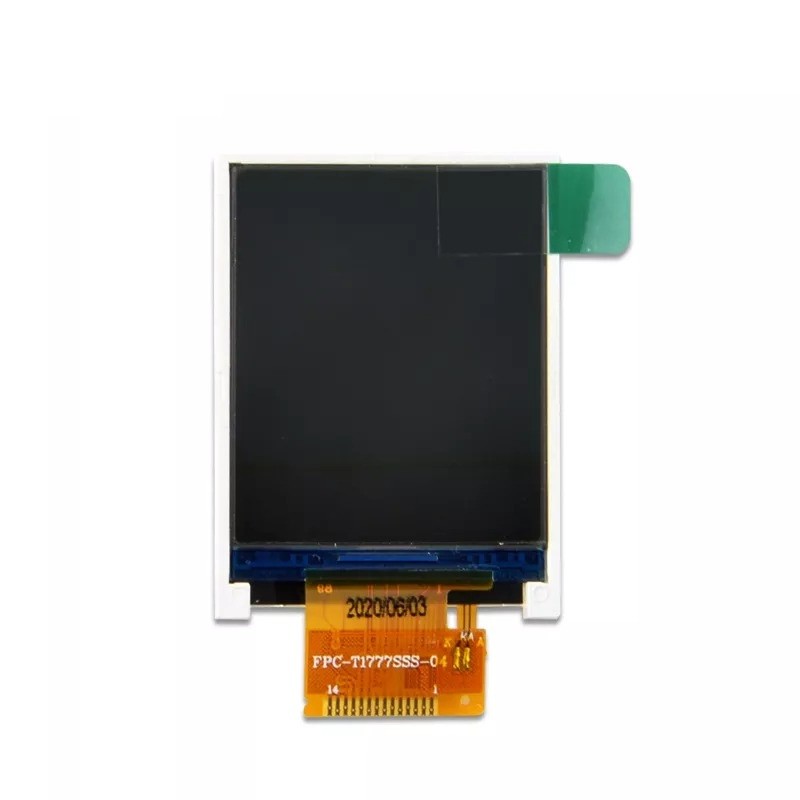

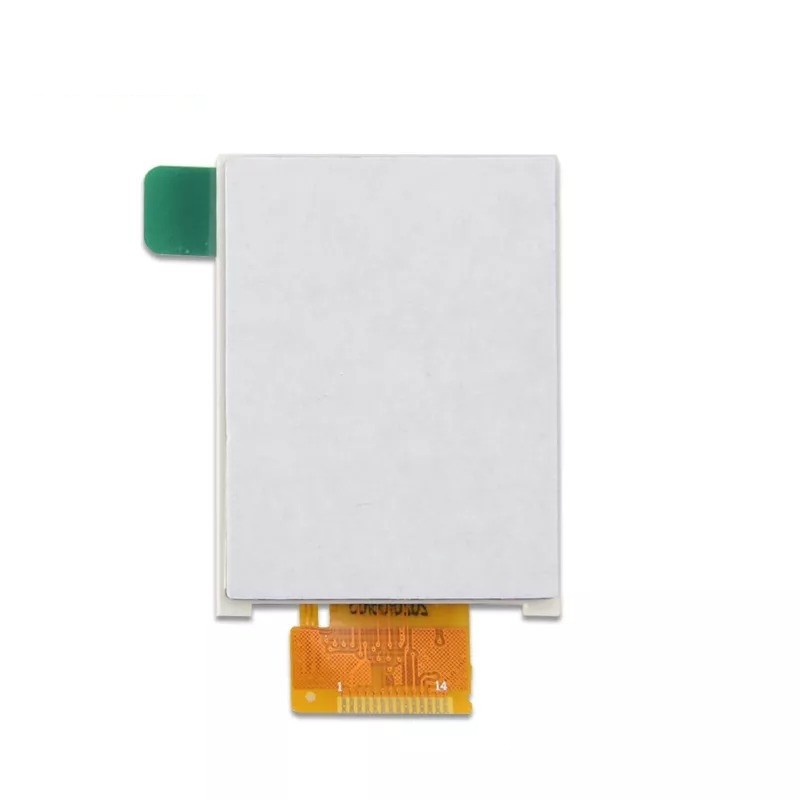

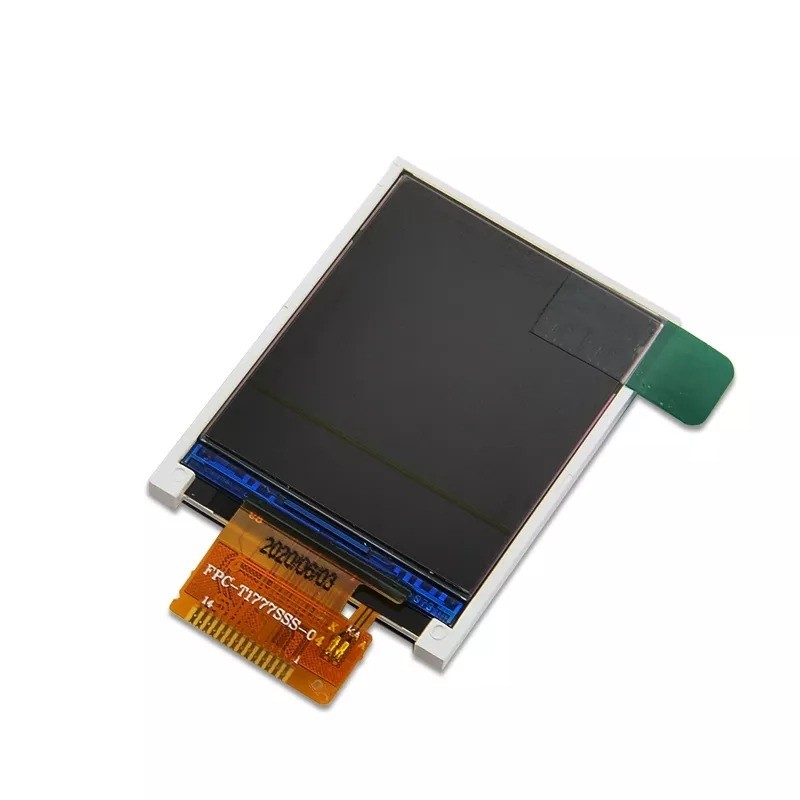

首页 产品展示 0.9英寸-1.8英寸 TFT LCD 1.77英寸 LCD RG177SSS-04 1.77英寸 128x160 TFT LCD ST773
| Feature | Specification | Unit | |
| Display Spec | Brand | Ronen | - |
| Size | 1.77 | inch | |
| Resolution | 128*160 | dots | |
| Pixel pitch | 0.219(H)*0.219(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 12 | o'clock | |
| Gray Scale Inversion Direction | 6 | o'clock | |
| Luminance | 220 | cd/m2 | |
|
Mechanical Characteristics |
LCM (W * H * D) | 34.70x46.70x4.00 | mm |
| Active Area (W * H ) | 28.03×35.04 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 2P-LED | pcs | |
| Operation temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
|
Electrical Characteristics |
Interface | 4-wire SPI/14PIN | - |
| LCM Power Supply | 2.8 | V | |
| LED Power Supply | 3 | V | |
| Color Depth | 262K | - | |
| LCM Driver IC | ST7735V | - | |
