Módulos TFT LCD redondos 0,99″–7,0″ — wearables e botões | DISEA
Área ativa verdadeiramente circular — sem cantos mascarados. Os 7 módulos TFT redondos da DISEA vão de 0,99″ a 7,0″ com resolução 128x115–1080x1080 e brilho de até 1000 cd/m², feitos para smartwatches, botões de áudio, mostradores de termostato e dispositivos de beleza. As interfaces SPI e MCU enxugam o BOM; o ODM cobre formatos de flex e coberturas coladas.
- 7 módulos verdadeiramente circulares, 0,99″–7,0″
- Brilho até 1000 cd/m², resoluções 128x115–1080x1080
- Interfaces SPI / MCU — BOM wearable com poucos pinos
7 modelos padrão nesta família

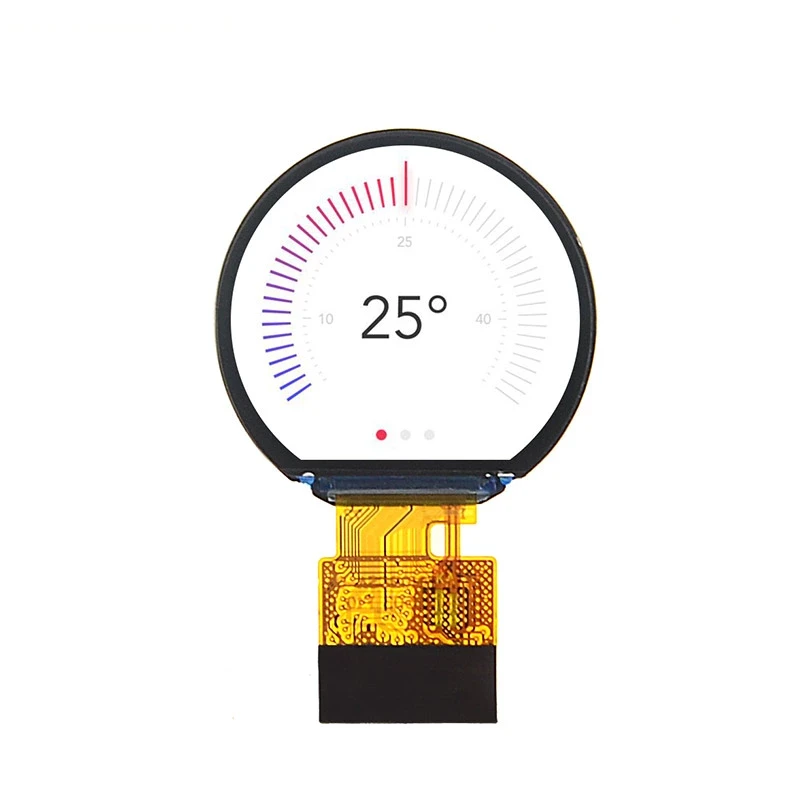

DS-T010BCSA-01

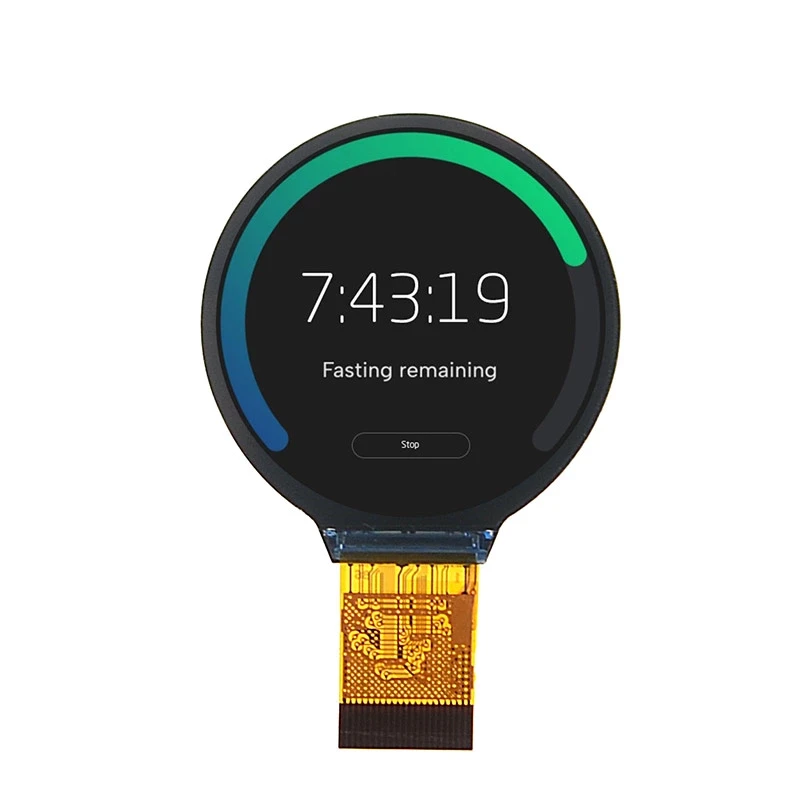

DS-T013HQGA-01

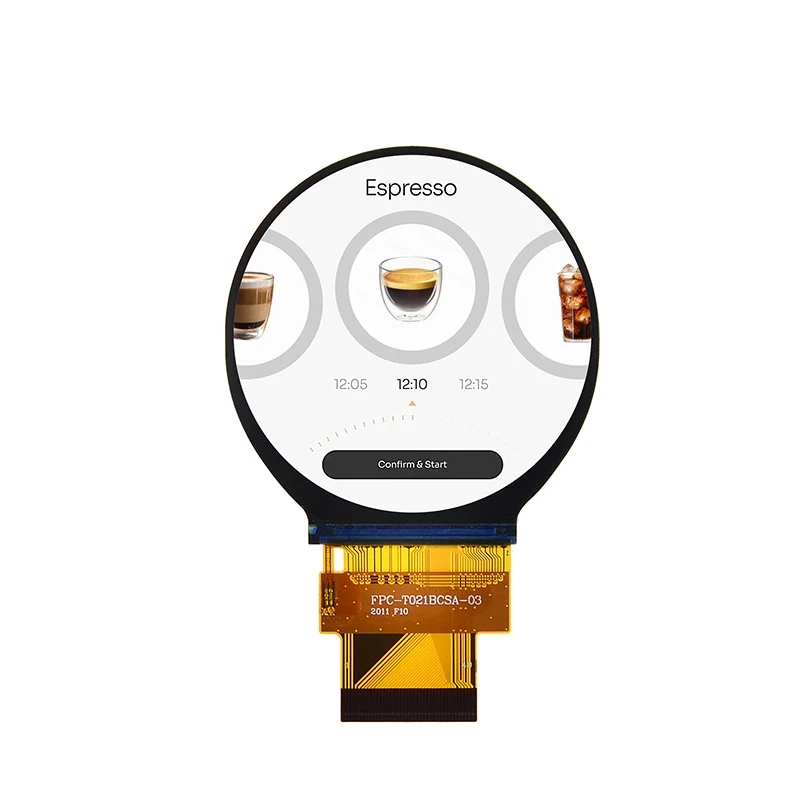

DS-T021BCSA-02

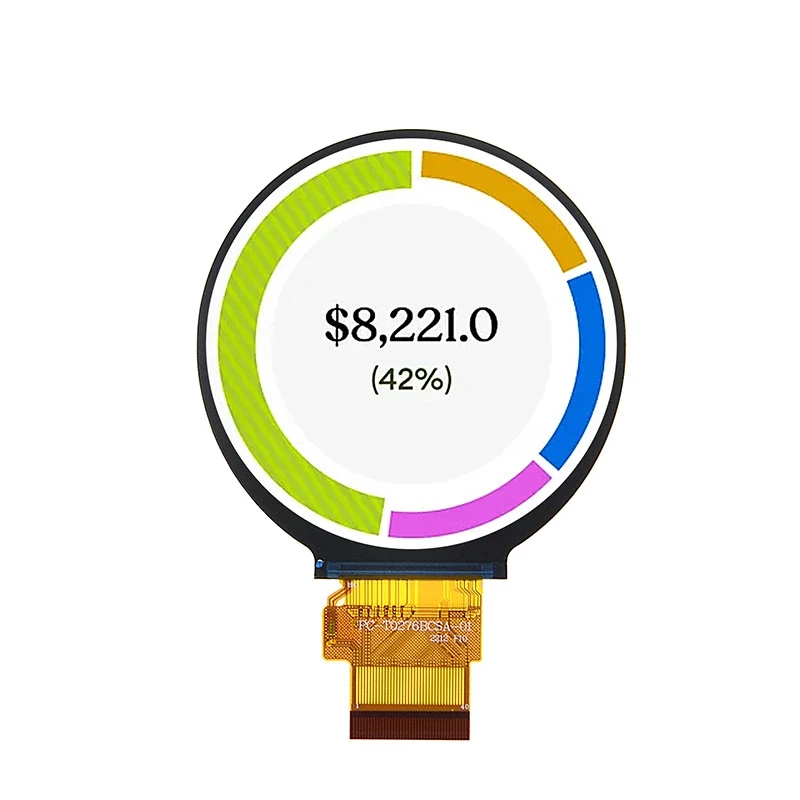

DS-T0276BCSA-01

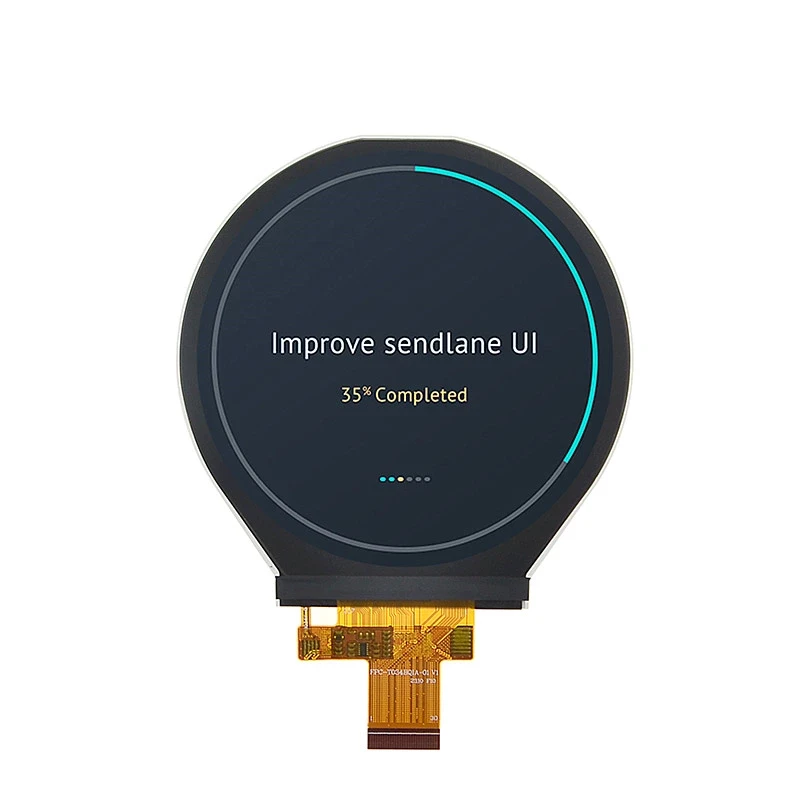

DS-T034BOIA-01

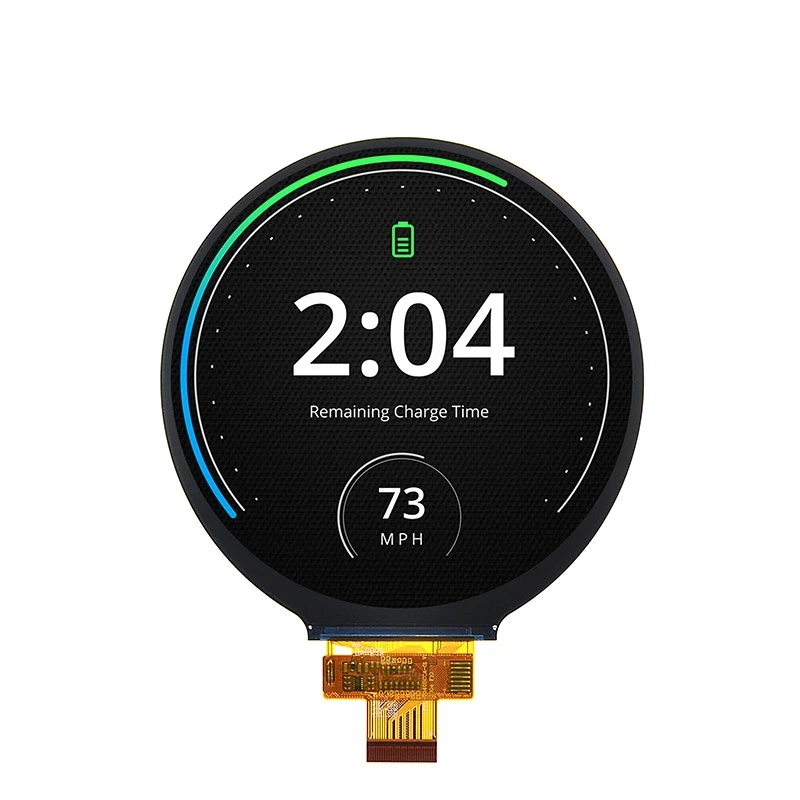

DS-T040BCSA-01

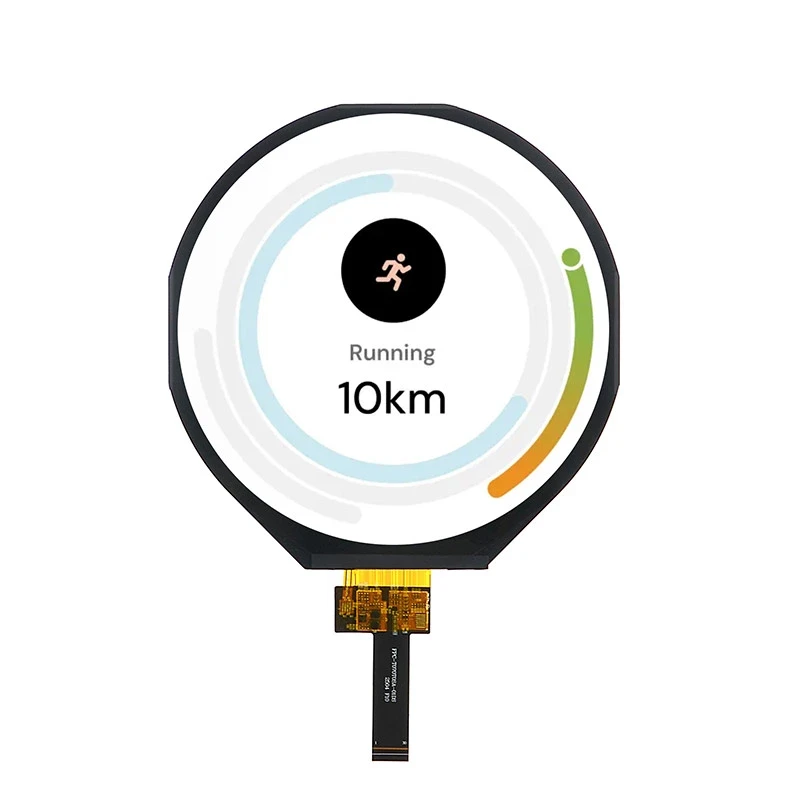

DS-T070TOSA-01
Perguntas
Can you customize and develop?
Yes. Our 72-engineer R&D team takes requirements from concept to EVT; for shaped / odd-form displays the concept-to-EVT cycle is 6–8 weeks with NRE from USD 4,800–7,500 depending on structural complexity. FPC, backlight, cover-lens, bonding and interface are all customizable.
Is the MOQ low?
Standard MOQ is 500 pcs. We accept small batches (<500 pcs) for prototypes and bridge builds, with a unit premium of about +15%. Tell us your volume and we'll quote.
Do you provide samples, and what is your sample policy?
Yes. We sample every standard model in our 193-model catalog. Standard catalog parts are available as samples, typically at a nominal charge (often free for qualified projects), with the prototype / sampling cycle in 5–7 working days. Custom / ODM parts are sampled under the development NRE and timeline on the custom & ODM solutions page.
Each standard sample ships with the full package — datasheet, mechanical dimension drawing and 3D STEP model — so your mechanical and firmware teams can begin layout before mass production. Small bridge builds (<500 pcs) are supported if you need volume between sample and MP.
Tell us the P/N, quantity and destination on the contact page, and we'll arrange the sample and quote any applicable sample or freight cost.
