Runde TFT-LCD-Module 0,99″–7,0″ — Wearables & Drehknöpfe | DISEA
Echte kreisförmige aktive Fläche — keine maskierten Ecken. Die 7 runden TFT-Module von DISEA umfassen 0,99″ bis 7,0″ in 128x115–1080x1080 Auflösung mit bis zu 1000 cd/m² — für Smartwatches, Audio-Drehknöpfe, Thermostat-Zifferblätter und Beauty-Geräte. SPI- und MCU-Schnittstellen halten den BOM klein; ODM deckt Flex-Formen und gebondete Abdeckungen ab.
- 7 wirklich runde Module, 0,99″–7,0″
- Helligkeit bis 1000 cd/m², Auflösungen 128x115–1080x1080
- SPI-/MCU-Schnittstellen — Wearable-BOM mit wenigen Pins
7 Standardmodelle in dieser Familie

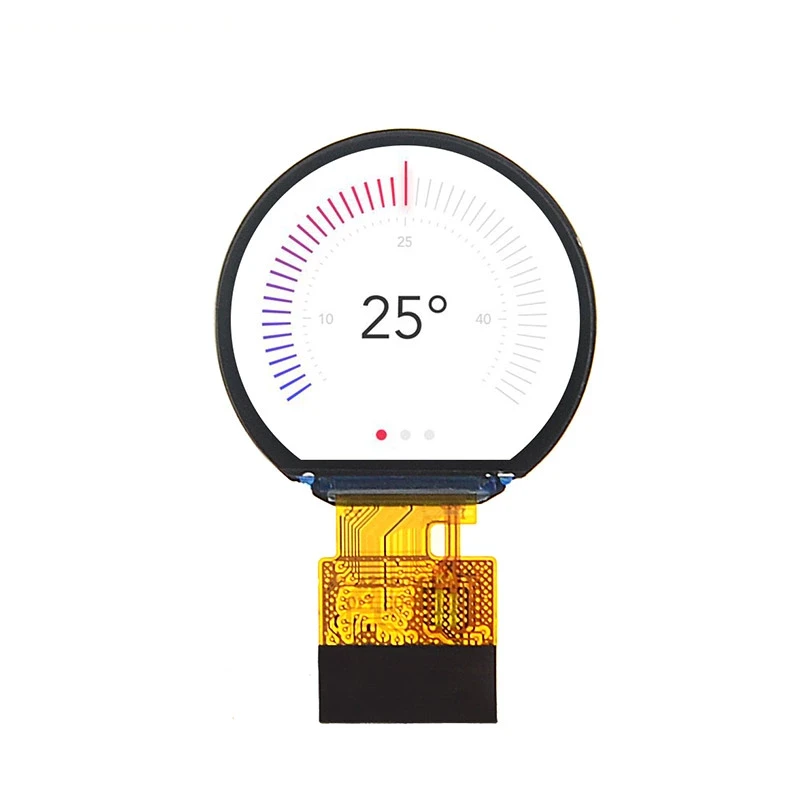

DS-T010BCSA-01

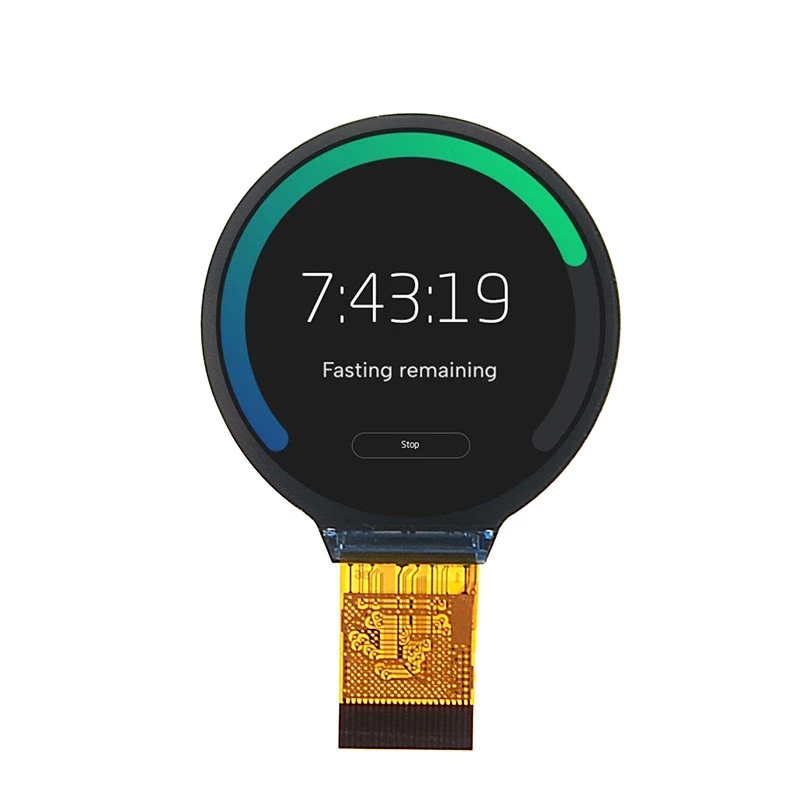

DS-T013HQGA-01

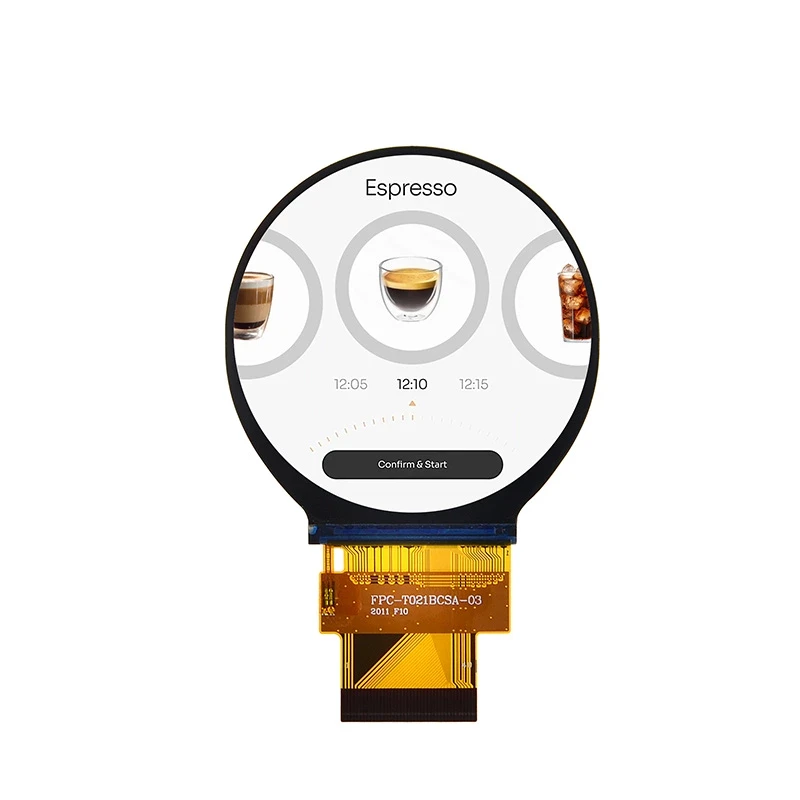

DS-T021BCSA-02

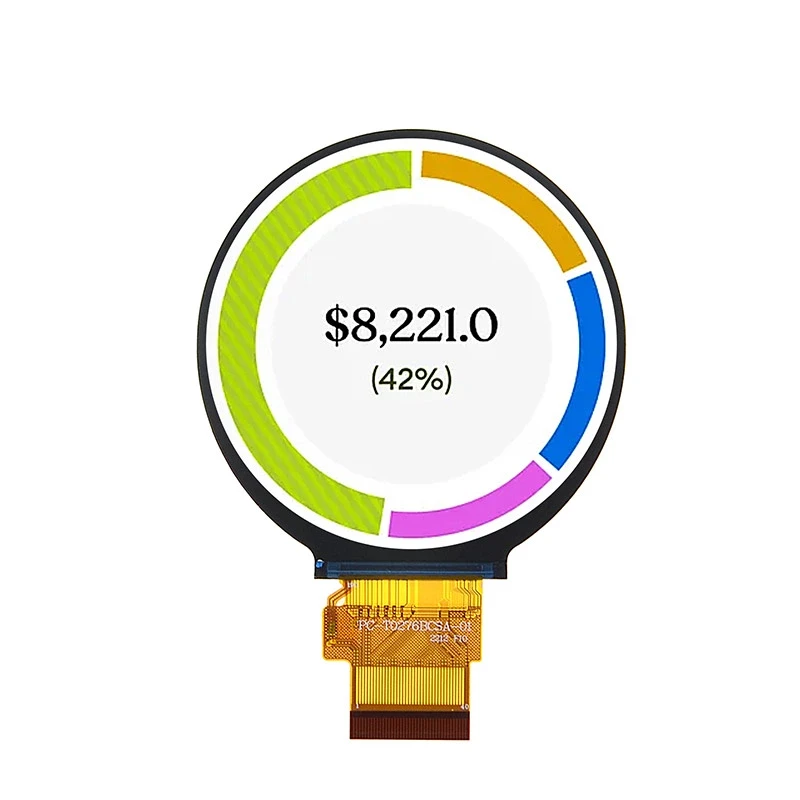

DS-T0276BCSA-01

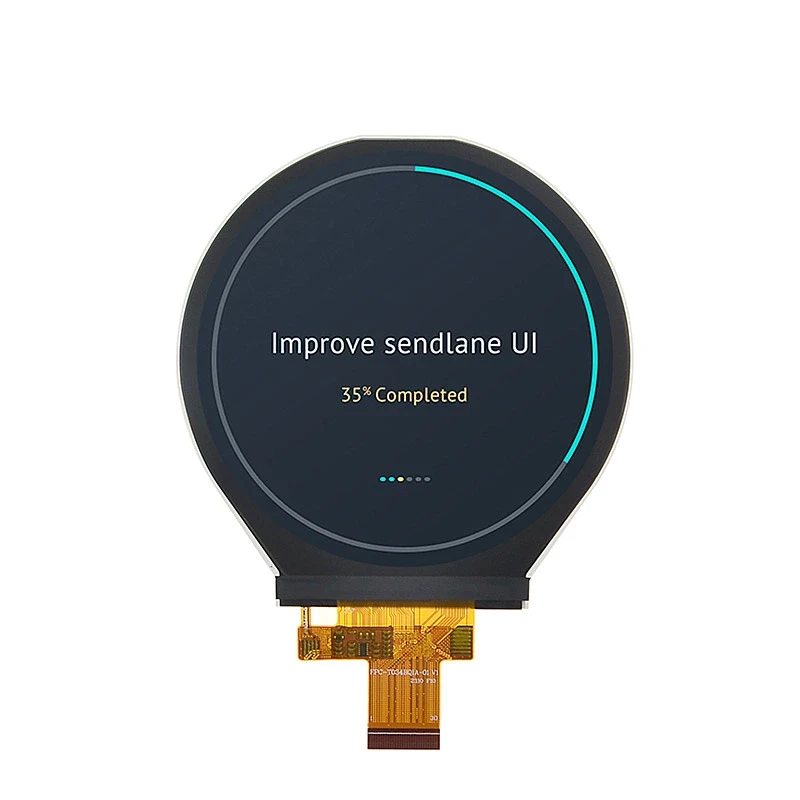

DS-T034BOIA-01

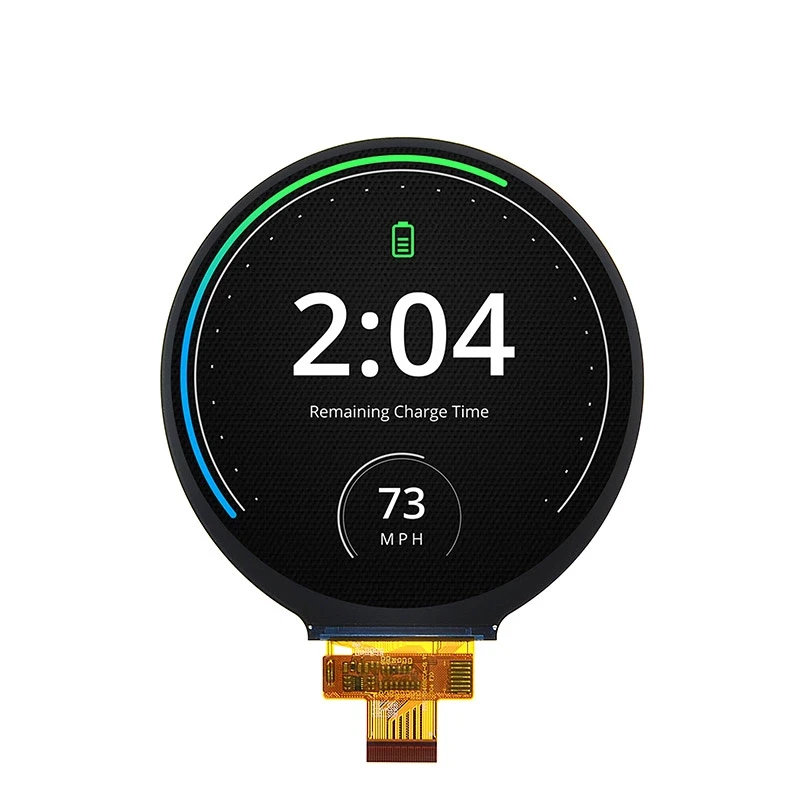

DS-T040BCSA-01

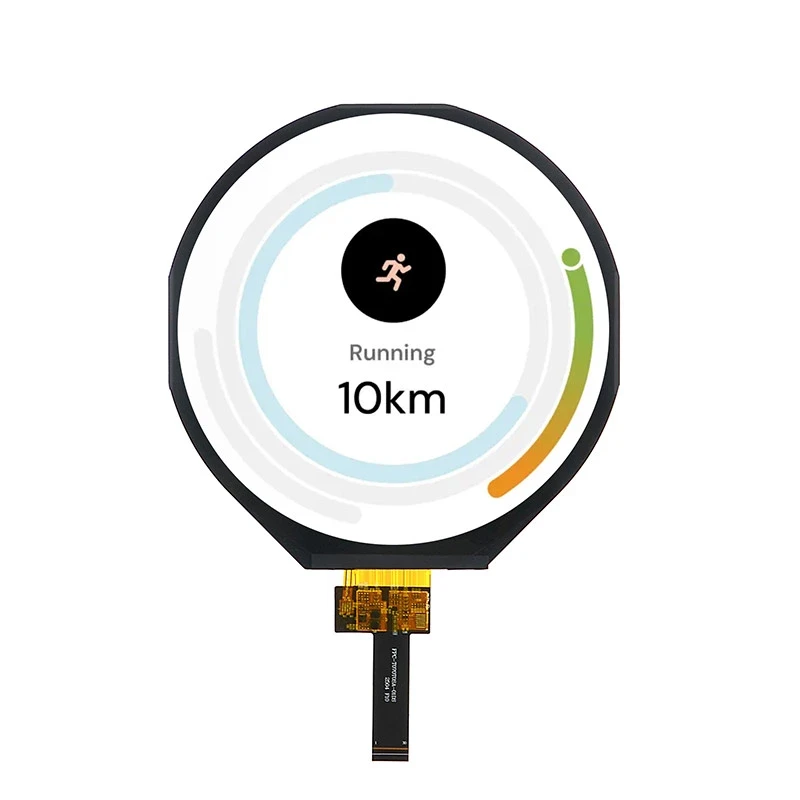

DS-T070TOSA-01
FAQ
Can you customize and develop?
Yes. Our 72-engineer R&D team takes requirements from concept to EVT; for shaped / odd-form displays the concept-to-EVT cycle is 6–8 weeks with NRE from USD 4,800–7,500 depending on structural complexity. FPC, backlight, cover-lens, bonding and interface are all customizable.
Is the MOQ low?
Standard MOQ is 500 pcs. We accept small batches (<500 pcs) for prototypes and bridge builds, with a unit premium of about +15%. Tell us your volume and we'll quote.
Do you provide samples, and what is your sample policy?
Yes. We sample every standard model in our 193-model catalog. Standard catalog parts are available as samples, typically at a nominal charge (often free for qualified projects), with the prototype / sampling cycle in 5–7 working days. Custom / ODM parts are sampled under the development NRE and timeline on the custom & ODM solutions page.
Each standard sample ships with the full package — datasheet, mechanical dimension drawing and 3D STEP model — so your mechanical and firmware teams can begin layout before mass production. Small bridge builds (<500 pcs) are supported if you need volume between sample and MP.
Tell us the P/N, quantity and destination on the contact page, and we'll arrange the sample and quote any applicable sample or freight cost.
