Instrument & Cluster Display Modules — Round, Square, Bar ≤7″ | DISEA
Gauges and cluster graphics read best on panels shaped like the dial. DISEA carries 19 special-format modules up to 7.0″ — round, square and bar — spanning 128x115–1080x1080 resolution and 280–1000 cd/m². They suit two-wheeler clusters, power-tool gauges, generator panels and legacy needle replacements. Custom cut-outs and mask shapes are our ODM bread and butter.
- 19 special-format panels ≤7.0″ — round, square, bar
- Up to 1000 cd/m² and wide-temperature options
- Custom masks, cut-corners and needle-style layouts via ODM
19 standard models in this family
DS-T010BCSA-01
DS-T013HQGA-01

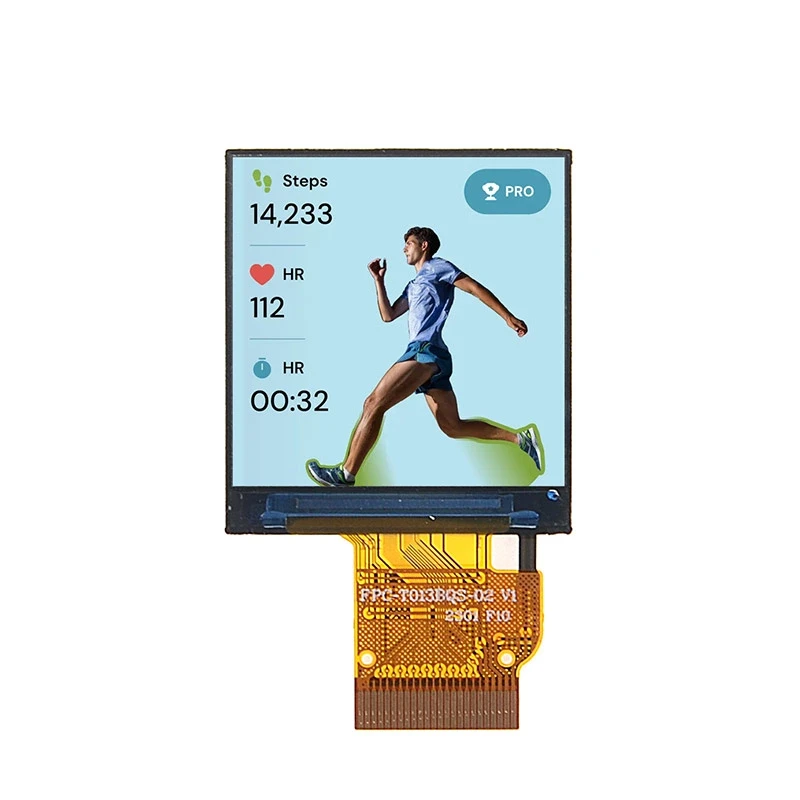

DS-T013BQSA-01

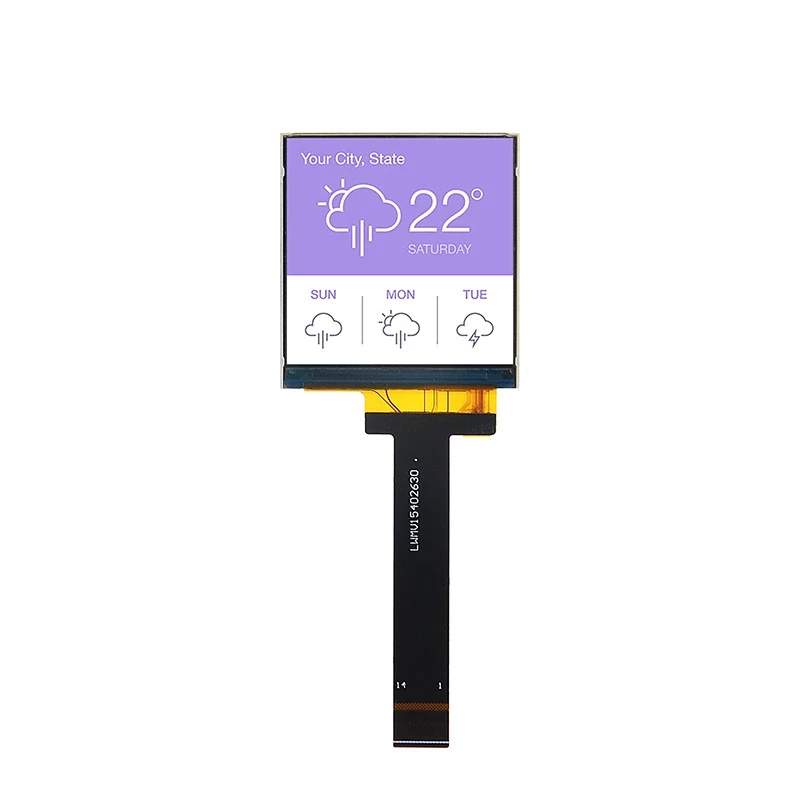

DS-T015BOSA-01
DS-T021BCSA-02
DS-T027BOIA-01
DS-T0276BCSA-01

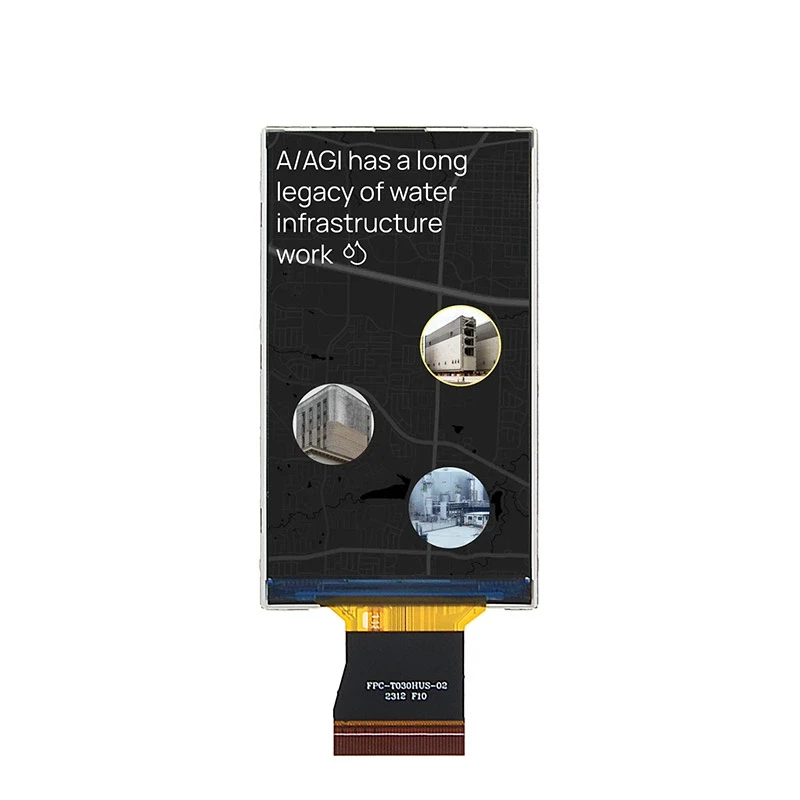

DS-T030HUSA-01
DS-T034BOIA-01

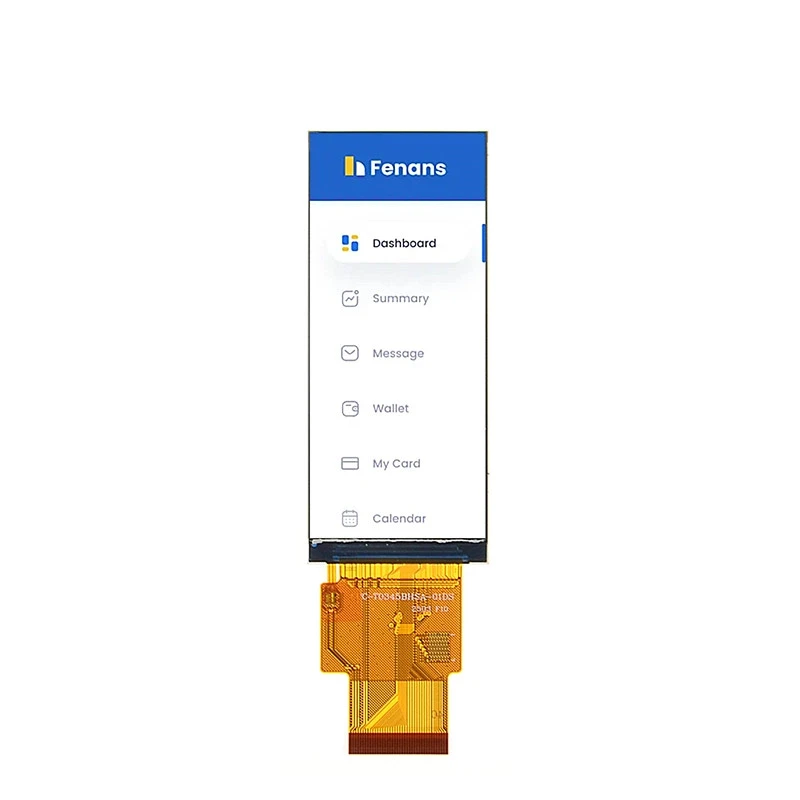

DS-T0345BHSA-01

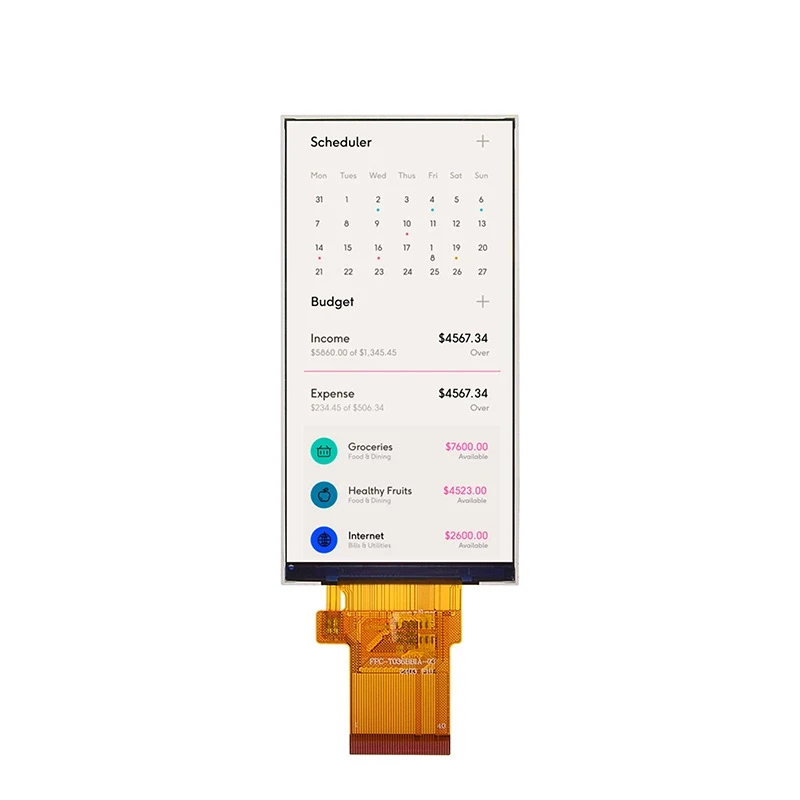

DS-T036BBIA-03

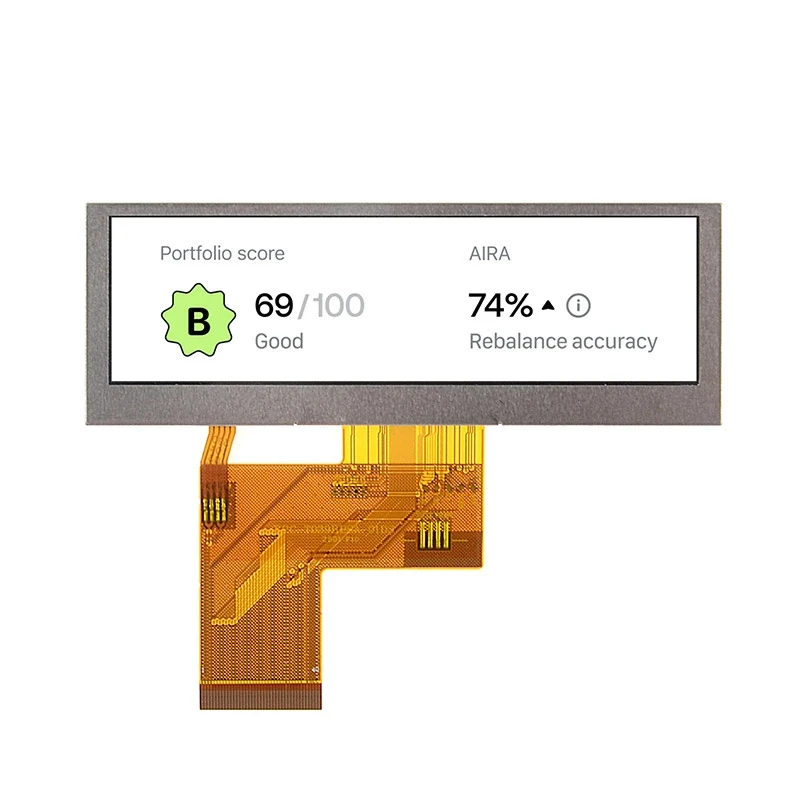

DS-T039BPSA-01
DS-T0399BUSA-01

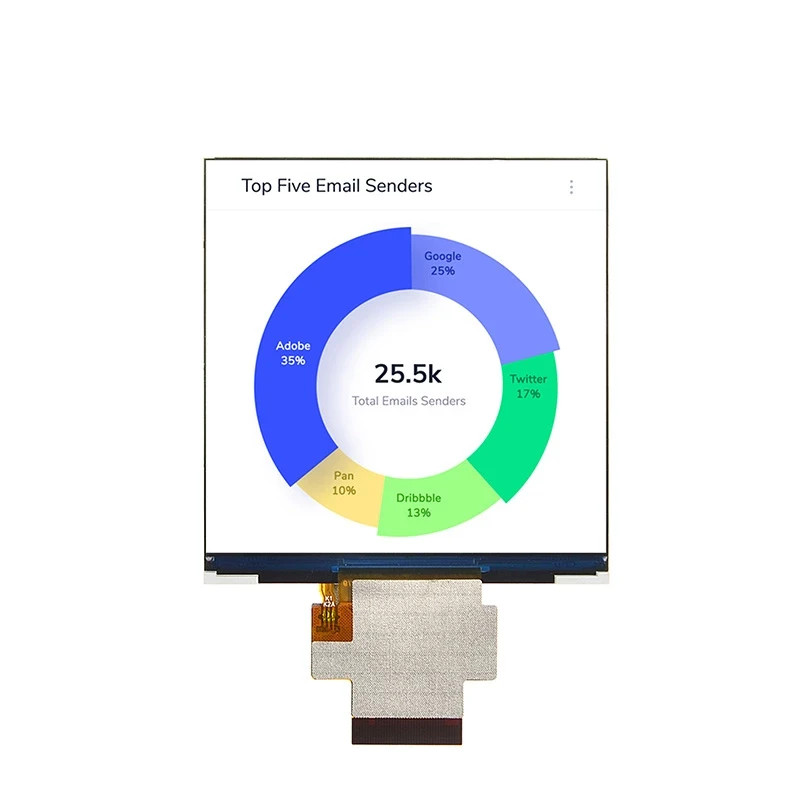

DS-T040HCSA-02

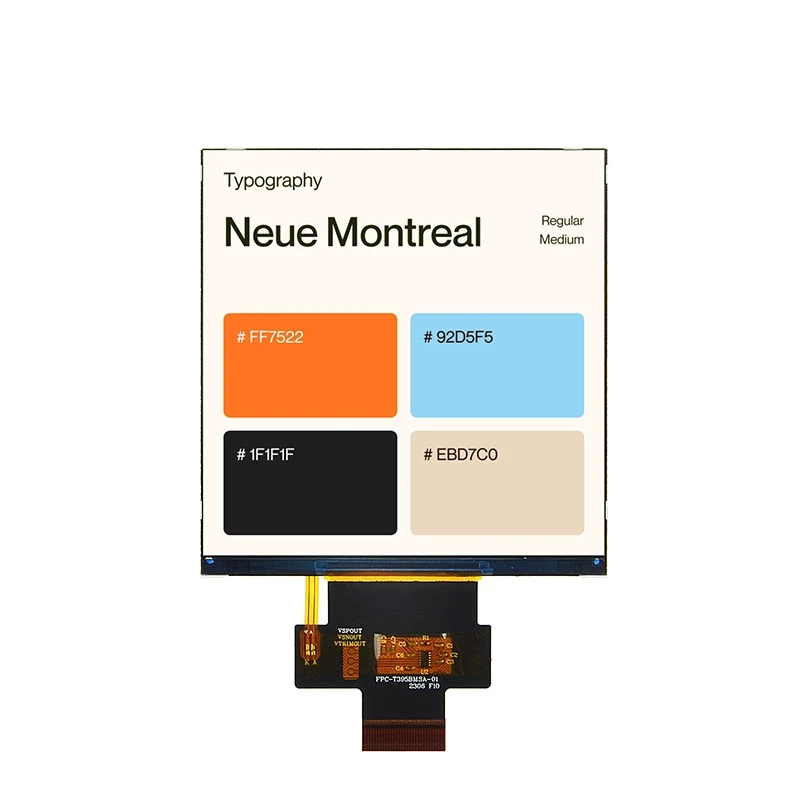

DS-T0395BMSA-01
DS-T040BCSA-01

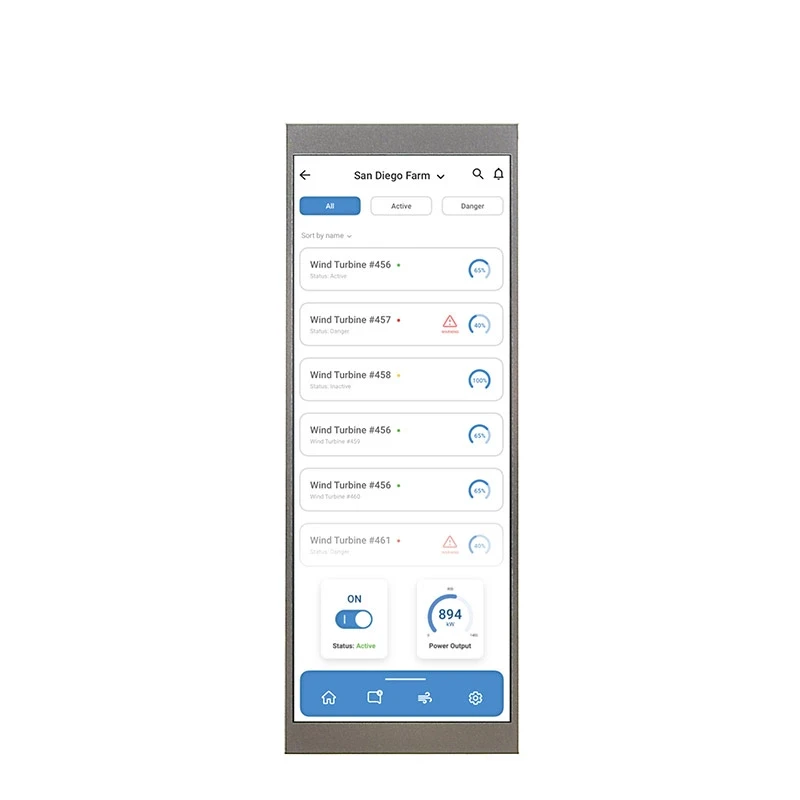

DS-T068BZSA-01
DS-T070BUSA-01
DS-T070TOSA-01
FAQ
Can you customize and develop?
Yes. Our 72-engineer R&D team takes requirements from concept to EVT; for shaped / odd-form displays the concept-to-EVT cycle is 6–8 weeks with NRE from USD 4,800–7,500 depending on structural complexity. FPC, backlight, cover-lens, bonding and interface are all customizable.
Do you reliably cover the full small-to-large TFT size range?
Yes. DISEA's standard catalog lists 193 TFT LCD models from 0.96 to 21.5 inch, spanning IPS, TN, round, bar and square form factors. The range is produced continuously rather than project-by-project, so steady supply is the default, not the exception.
Total capacity: 35,308,420 pcs/year (LCD + CTP combined) from our own line — enough headroom to hold both volume and lead-time commitments across the full size range.
See the full list on the products page, or jump to small TFT / industrial TFT.
How do you handle long-term supply and end-of-life (EOL)?
The 193 standard models are produced continuously rather than project-by-project, backed by our own 35.3M pcs/year capacity, so steady multi-year supply is the default. For automotive and medical programs this is reinforced by IATF 16949 (incl. product design, Ch. 8.3) and ISO 13485 certifications.
We operate a PCN / EOL notification process and support last-time-buy planning. Request the formal obsolescence and long-term-supply policy for your program on the contact page.
