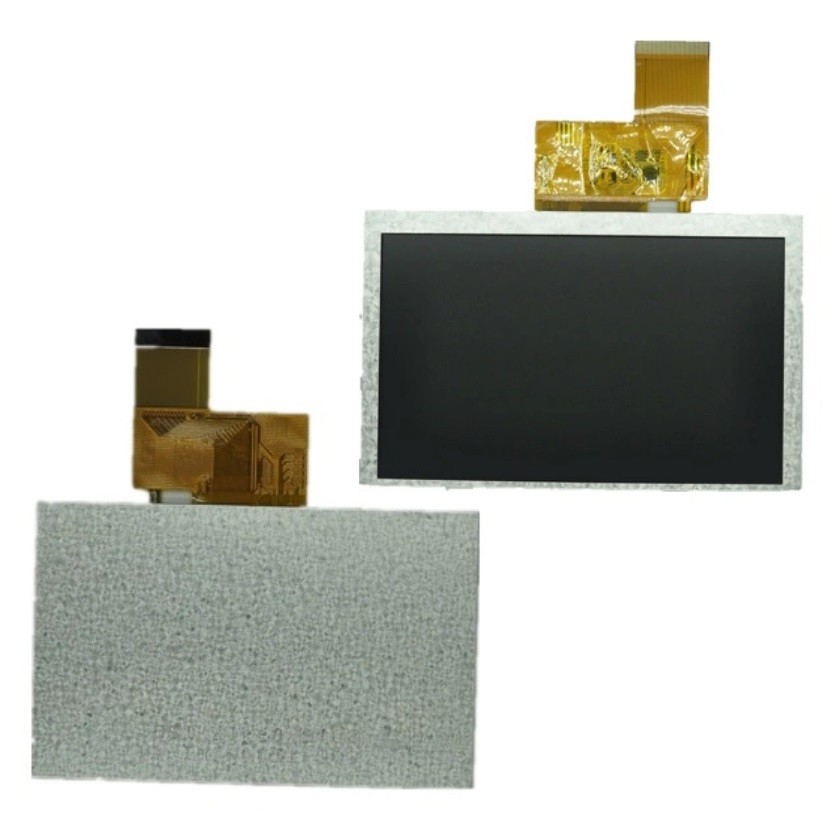

首页 产品展示 4.3英寸-6.8英寸 TFT LCD 5英寸 LCD Rg050cqt-01 5英寸 TFT LCD 800x480 450nit 4
| Item | Contents |
| LCD Type | TFT Transmissive --- |
| Driver element | a-Si TFT Active matrix |
| Number of Dots | 800*(RGB)*480 Dots |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 108 *64.8 mm |
| Viewing Direction | 12 O'clock |
| Driver IC | ILI5960+ILI6122 |
| Module Size(W*H*T) | 120.7x75.8x2.8 mm |
| Approx. Weight | TBD g |
| Back Light | 6*2 White LED |
| System interface | 24 Bit RGB interface |
| Backlight power consumption | 768mW |
| Operation temperature | -20~+70 |
| Storage temperature | -30~+80 |
| Interface | RGB888/40PIN |
