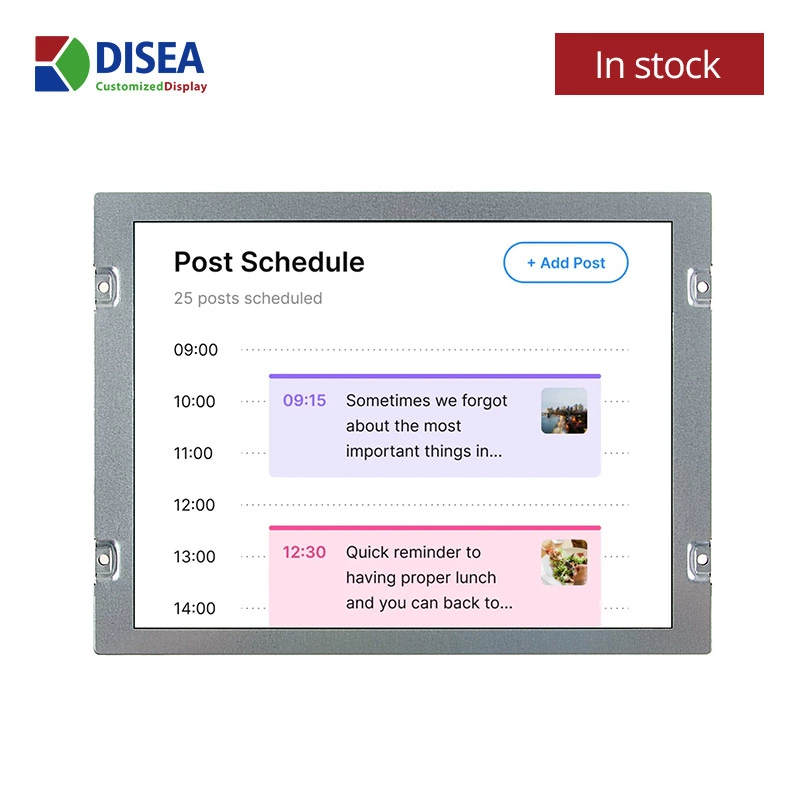

DS-T084BXJWA-01 - 8.4" 1024x768 TN TFT LCD module

DS-T084BXJWA-01 — 8.4″ 1024x768 TN TFT LCD Module

Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
8.4"1024x768TN500 cd/m²Without touch
Request Datasheet & Quote Back to All 193 Models
DISEA P/NDS-T084BXJWA-01
Display Size8.4 inch
Resolution1024x768
LCD Type / ShapeTN
Luminance500 cd/m²
Module InterfaceLVDS
LCD Driver ICJD9168S
Touch OptionWithout touch
Active Area (mm)170.496x127.872
Outline Dim. (mm)199.5x149.0x9.60
Operating Temp. (°C)-30-80
Storage Temp. (°C)-30-80

Similar Modules in 8 – 11 inch

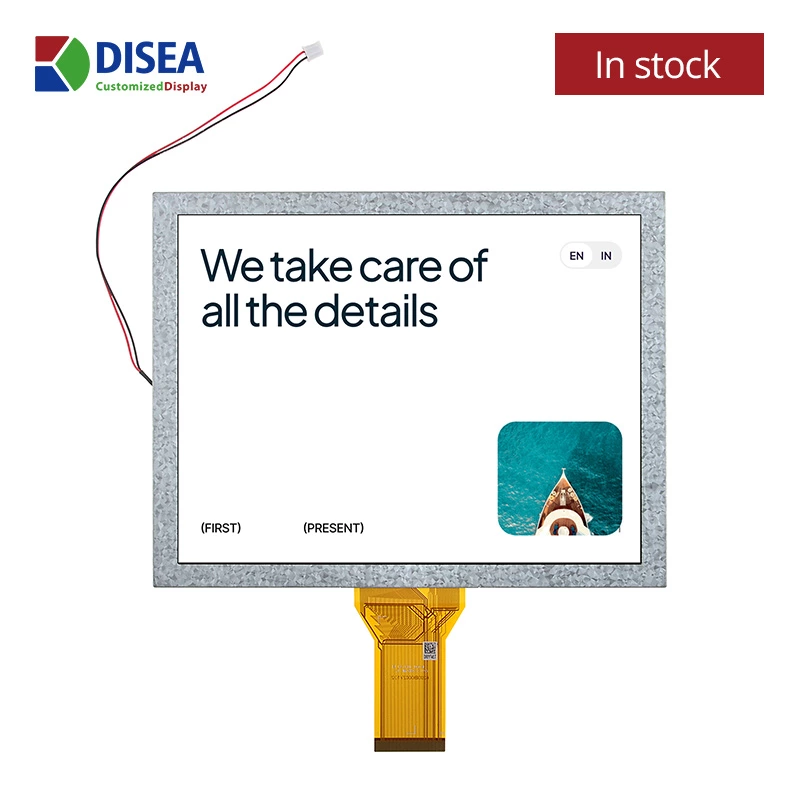

DS-T080QGH-03 - 8.0" 800x600 TN TFT LCD module

DS-T080QGH-03

8.0"800x600TN

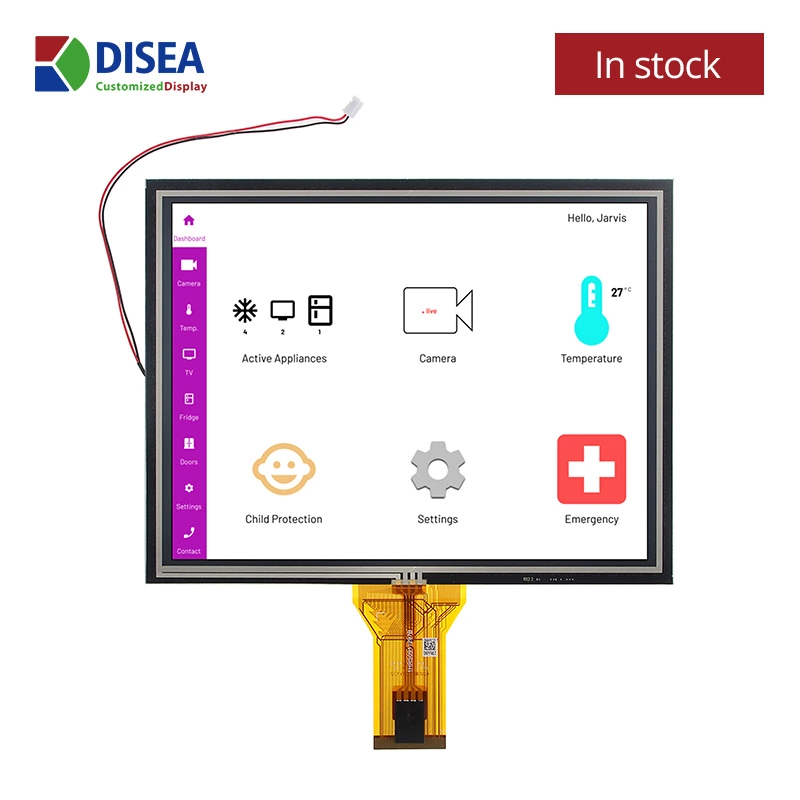

DS-T080QGH-07P - 8.0" 800x600 TN RTP TFT LCD module

DS-T080QGH-07P

8.0"800x600TN

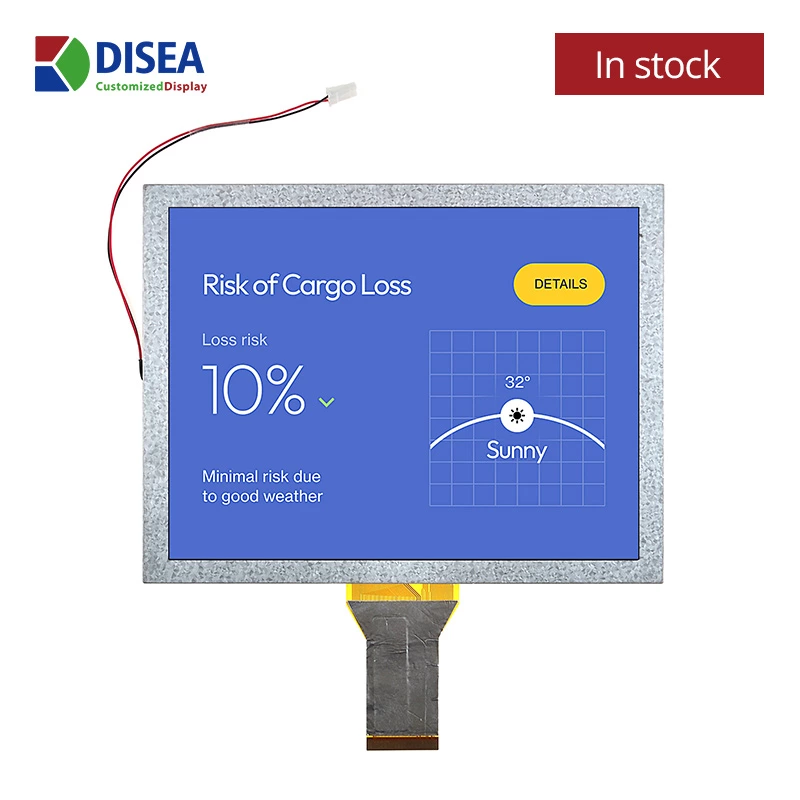

DS-T080QGH-09 - 8.0" 800x600 TN TFT LCD module
