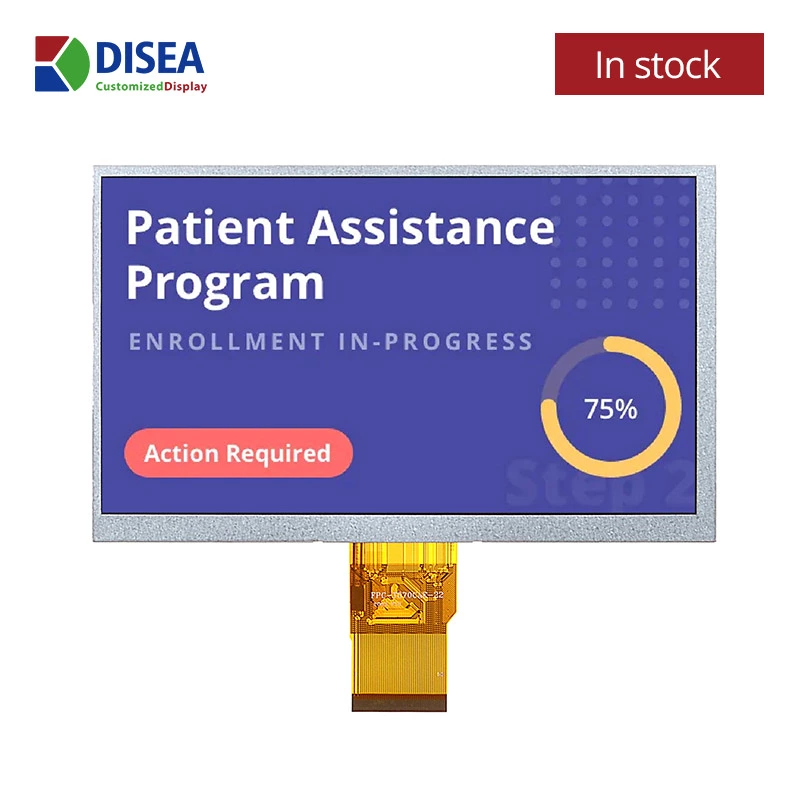

DS-T070BAHA-04 — 7.0″ 1024x600 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
7.0"1024x600IPS1000 cd/m²Without touch
| DISEA P/N | DS-T070BAHA-04 |
|---|---|
| Display Size | 7.0 inch |
| Resolution | 1024x600 |
| LCD Type / Shape | IPS |
| Luminance | 1000 cd/m² |
| Module Interface | 24BIT RGB |
| LCD Driver IC | HX8282A11/HX8696A |
| Touch Option | Without touch |
| Active Area (mm) | 154.21x85.92 |
| Outline Dim. (mm) | 164.90x100.00x5.70 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
