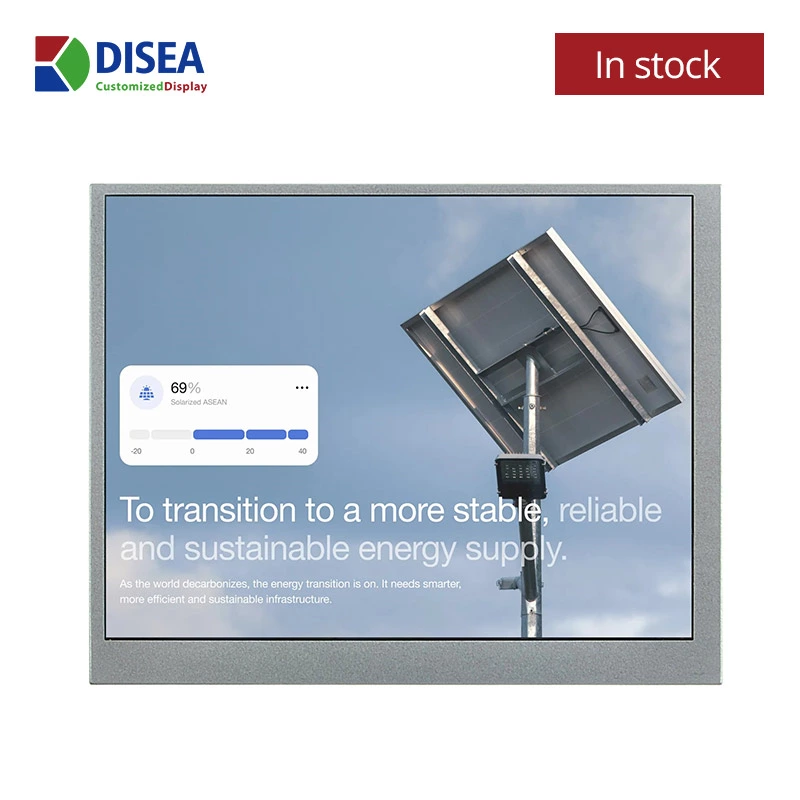

DS-T0565BGEA-04DE — 5.65″ 640x480 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
5.65"640x480IPS700 cd/m²Without touch
| DISEA P/N | DS-T0565BGEA-04DE |
|---|---|
| Display Size | 5.65 inch |
| Resolution | 640x480 |
| LCD Type / Shape | IPS |
| Luminance | 700 cd/m² |
| Module Interface | 18BT RGB |
| LCD Driver IC | JD9168S |
| Touch Option | Without touch |
| Active Area (mm) | 115.20x86.40 |
| Outline Dim. (mm) | 126.50x100.00x5.70 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 5 – 8 inch

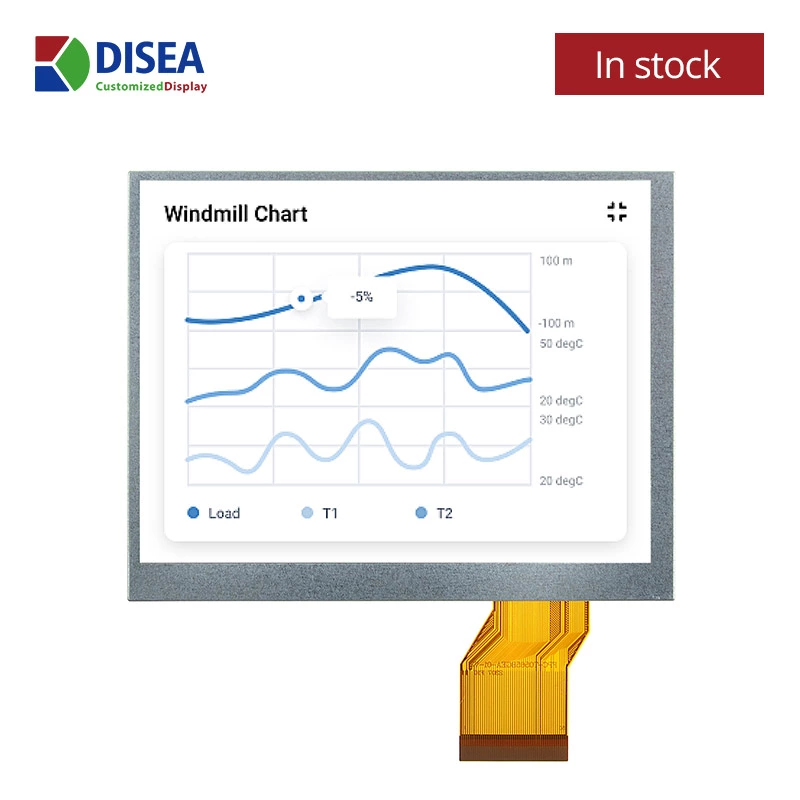

DS-T0565BGEA-01DE
5.65"640x480IPS
DS-T0565BGEA-03DE
5.65"640x480IPS

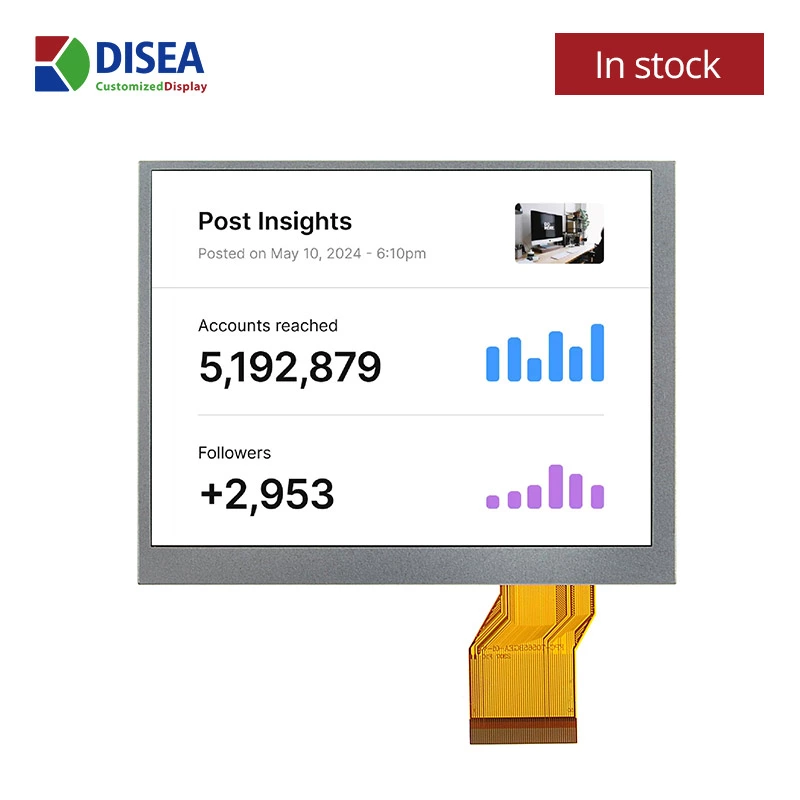

DS-T0565BGEA-02DE
5.65"640x480IPS
DS-T057BGEA-01DE
5.7"640x480IPS
