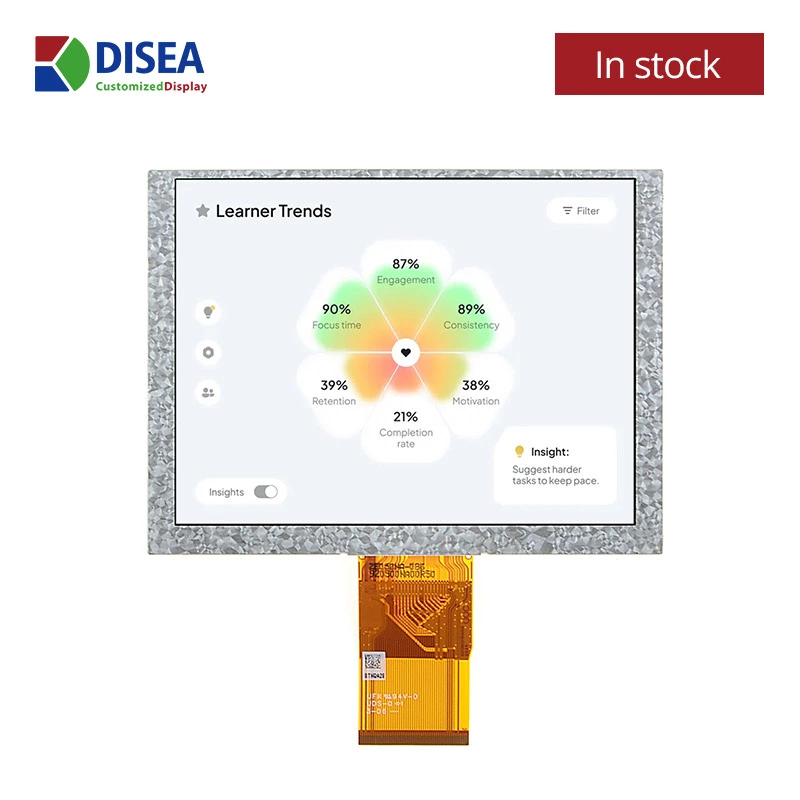

DS-T050QGH-02 — 5.0″ 640x480 TN TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
5.0"640x480TN800 cd/m²Without touch
| DISEA P/N | DS-T050QGH-02 |
|---|---|
| Display Size | 5.0 inch |
| Resolution | 640x480 |
| LCD Type / Shape | TN |
| Luminance | 800 cd/m² |
| Module Interface | 24BIT RGB |
| Touch Option | Without touch |
| Active Area (mm) | 101.57x76.18 |
| Outline Dim. (mm) | 117.65x88.43x5.70 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 5 – 8 inch

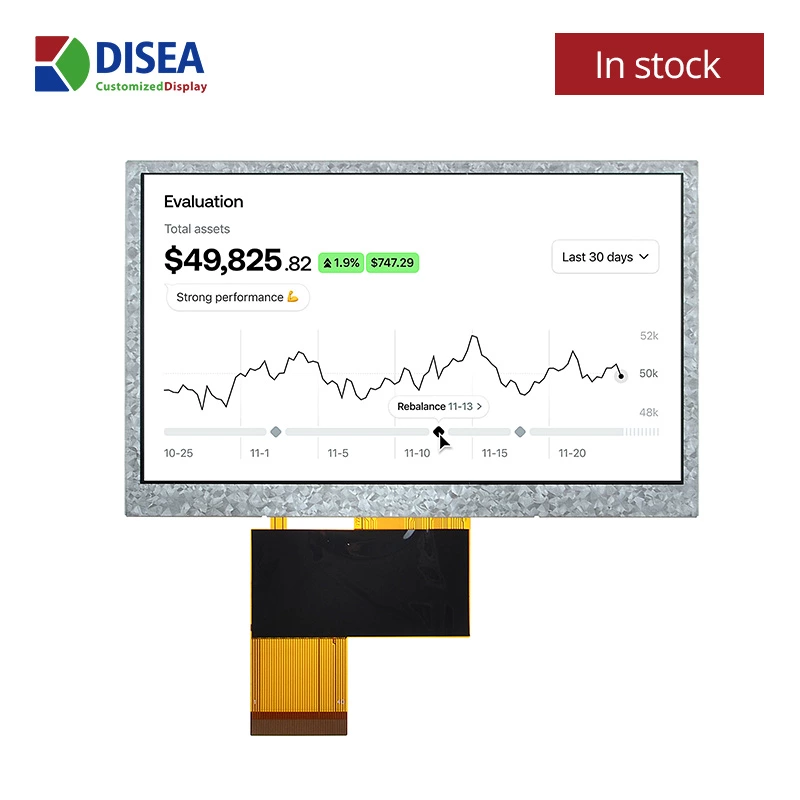

DS-T050BPH-01
5.0"480x272TN

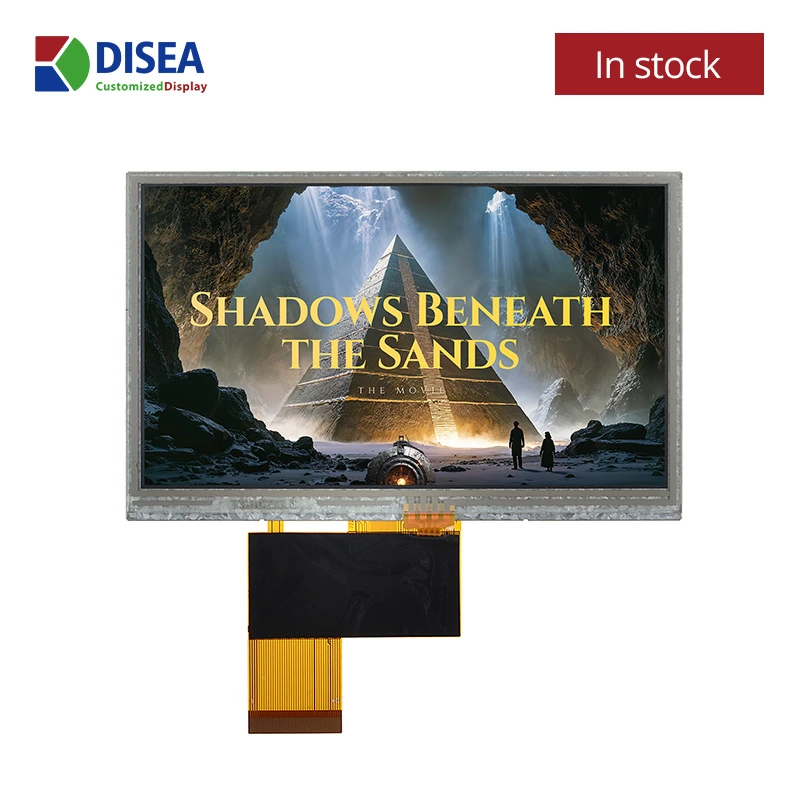

DS-T050BPH-01P
5.0"480x272TN

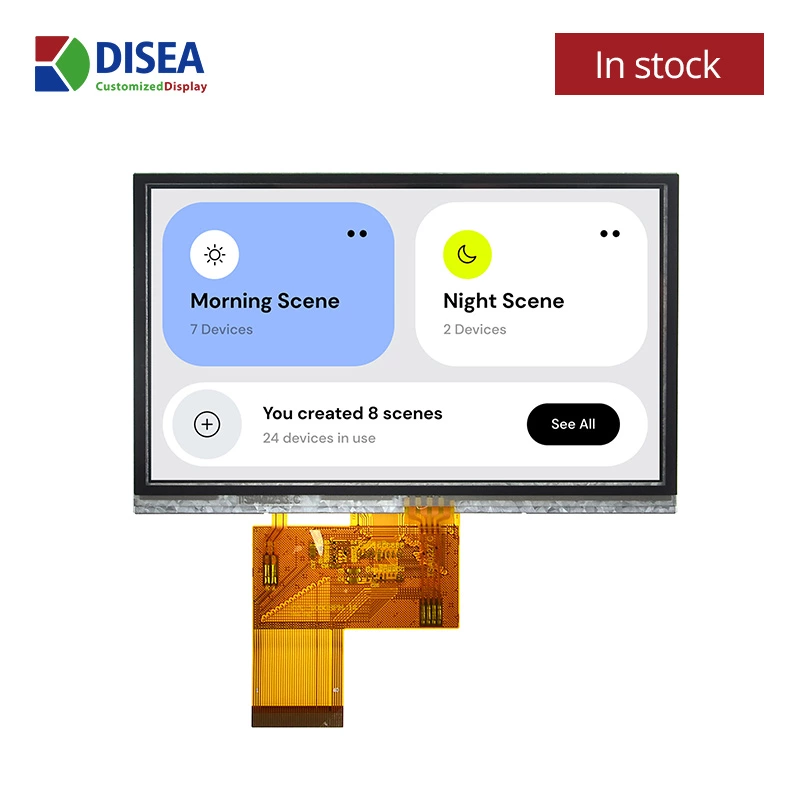

DS-T050BPH-14P
5.0"480x272TN

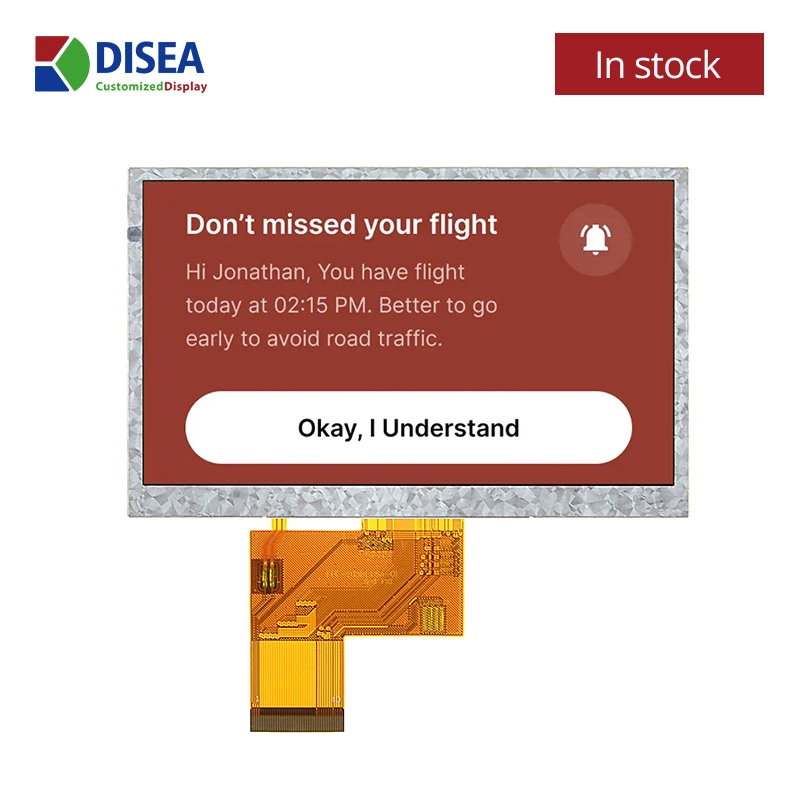

DS-T050BPSA-01
5.0"480x272IPS
