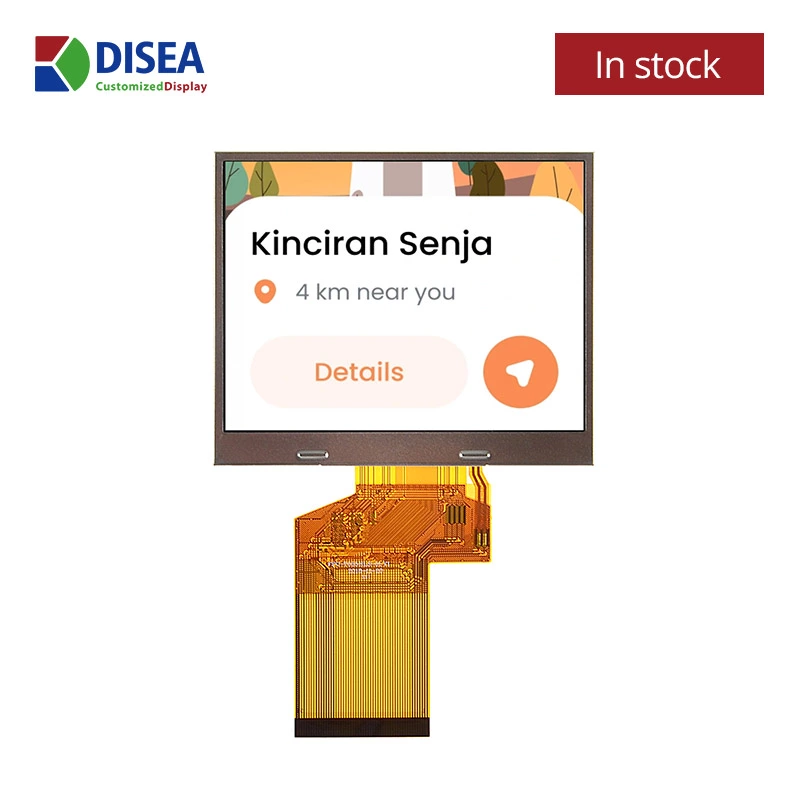

DS-T035HLSWA-01 - 3.5" 320x240 IPS TFT LCD module

DS-T035HLSWA-01 — 3.5″ 320x240 IPS TFT LCD Module

Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
3.5"320x240IPS1200 cd/m²Without touch
Request Datasheet & Quote Back to All 193 Models
DISEA P/NDS-T035HLSWA-01
Display Size3.5 inch
Resolution320x240
LCD Type / ShapeIPS
Luminance1200 cd/m²
Module InterfaceRGB 24BIT
LCD Driver ICST7272A
Touch OptionWithout touch
Active Area (mm)70.08x52.56
Outline Dim. (mm)76.80x63.90x3.05
Operating Temp. (°C)-30-85
Storage Temp. (°C)-30-85

Similar Modules in 3 – 5 inch

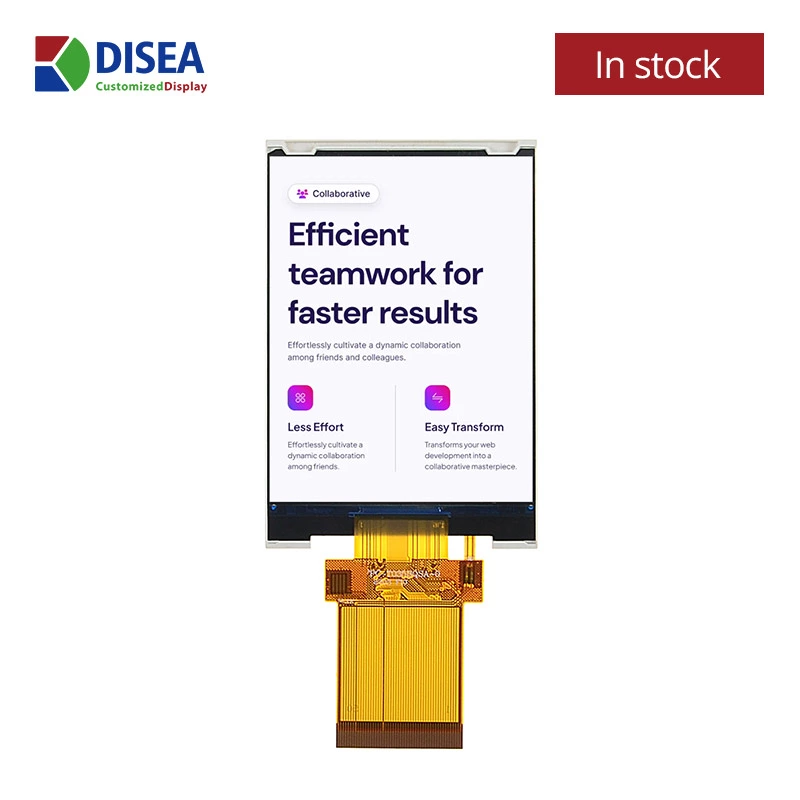

DS-T035BQSA-01 - 3.5" 240x320 IPS TFT LCD module

DS-T035BQSA-01

3.5"240x320IPS

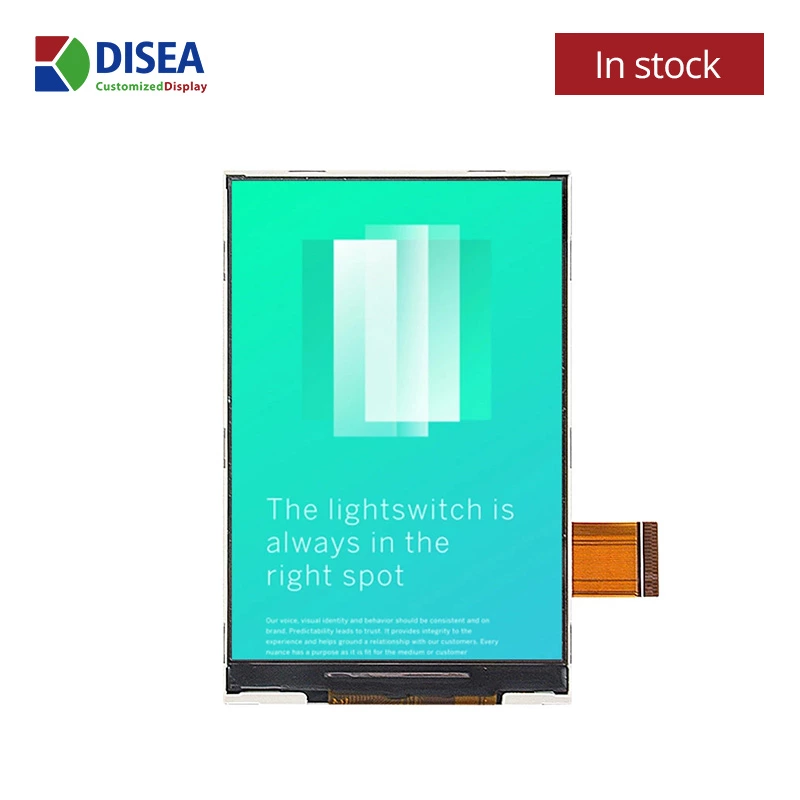

DS-T035SHI-01 - 3.5" 320x480 TN TFT LCD module

DS-T035SHI-01

3.5"320x480TN

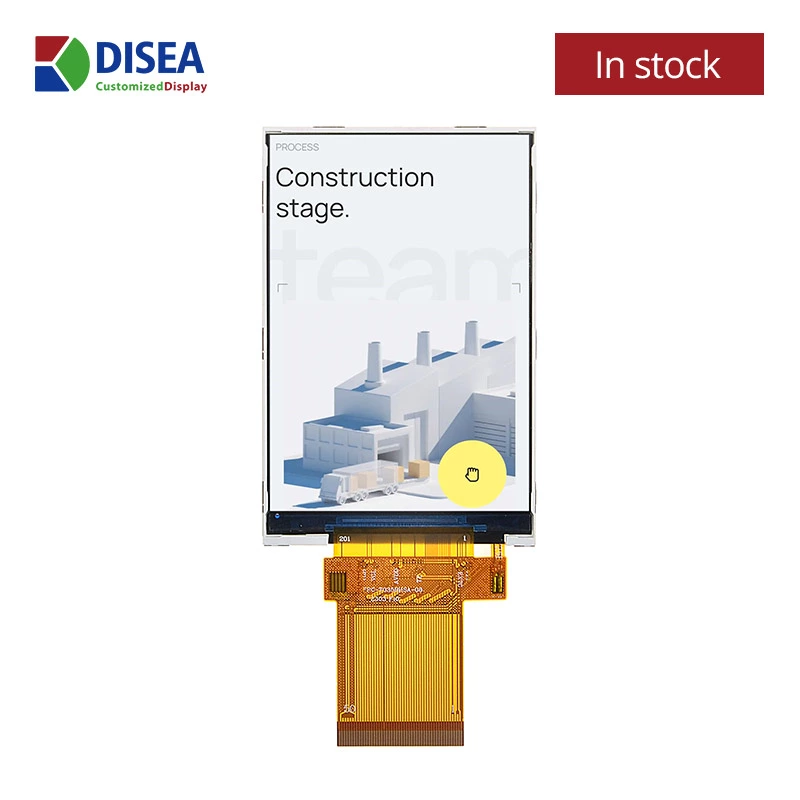

DS-T035BHSA-01 - 3.5" 320x480 IPS TFT LCD module

DS-T035BHSA-01

3.5"320x480IPS

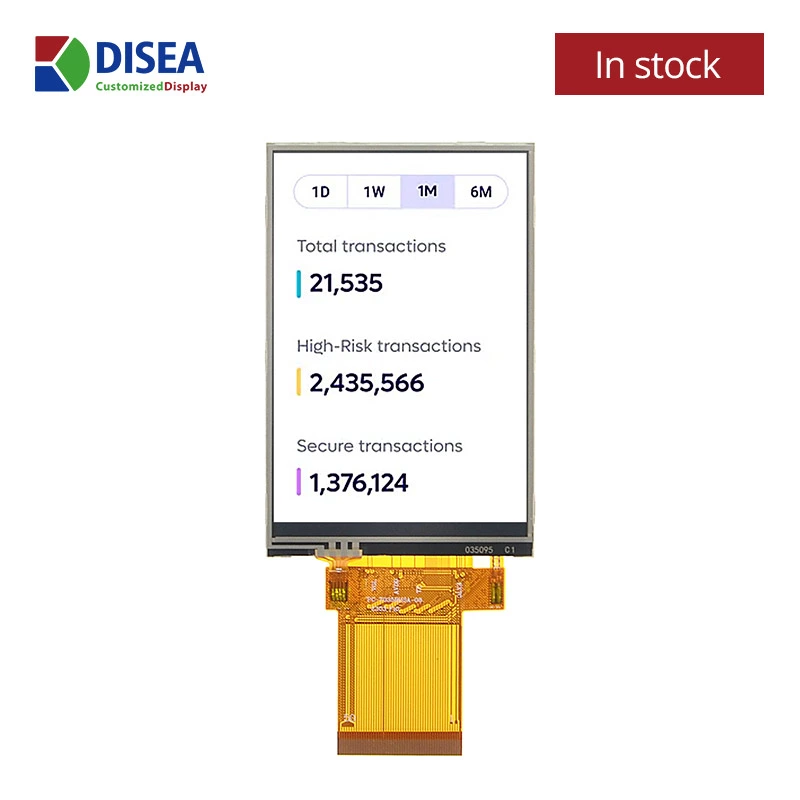

DS-T035BHSA-01P - 3.5" 320x480 IPS RTP TFT LCD module
