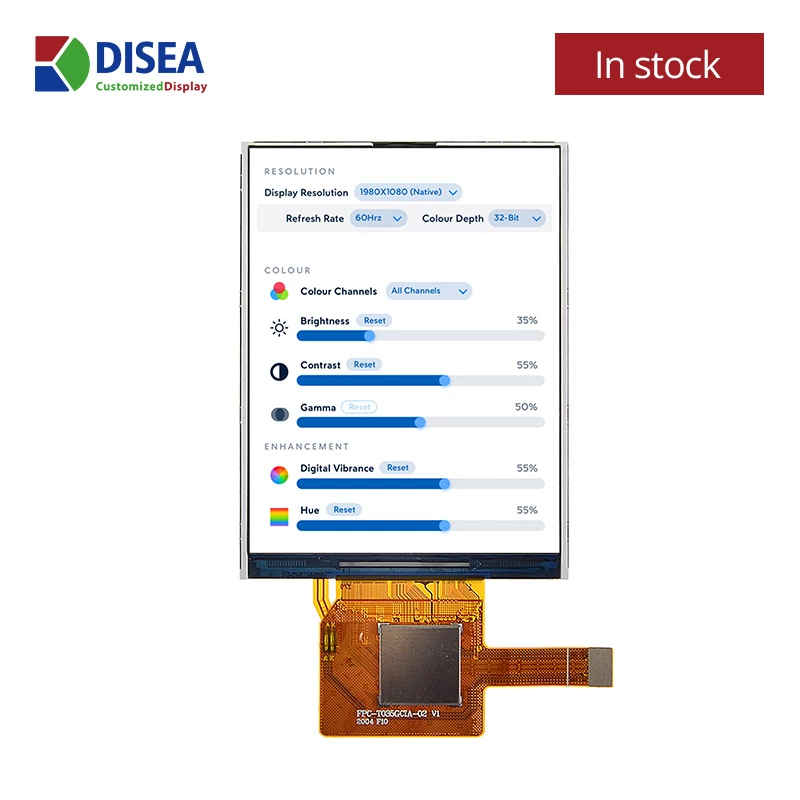

DS-T035GCIA-02 — 3.5″ 480x640 MVA TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
3.5"480x640MVA900 cd/m²Without touch
| DISEA P/N | DS-T035GCIA-02 |
|---|---|
| Display Size | 3.5 inch |
| Resolution | 480x640 |
| LCD Type / Shape | MVA |
| Luminance | 900 cd/m² |
| Module Interface | MIPI |
| LCD Driver IC | ILI9806E |
| Touch Option | Without touch |
| Active Area (mm) | 53.28x71.04 |
| Outline Dim. (mm) | 61.00x81.75x2.6 |
| Operating Temp. (°C) | -20-70 |
| Storage Temp. (°C) | -30-80 |
Similar Modules in 3 – 5 inch

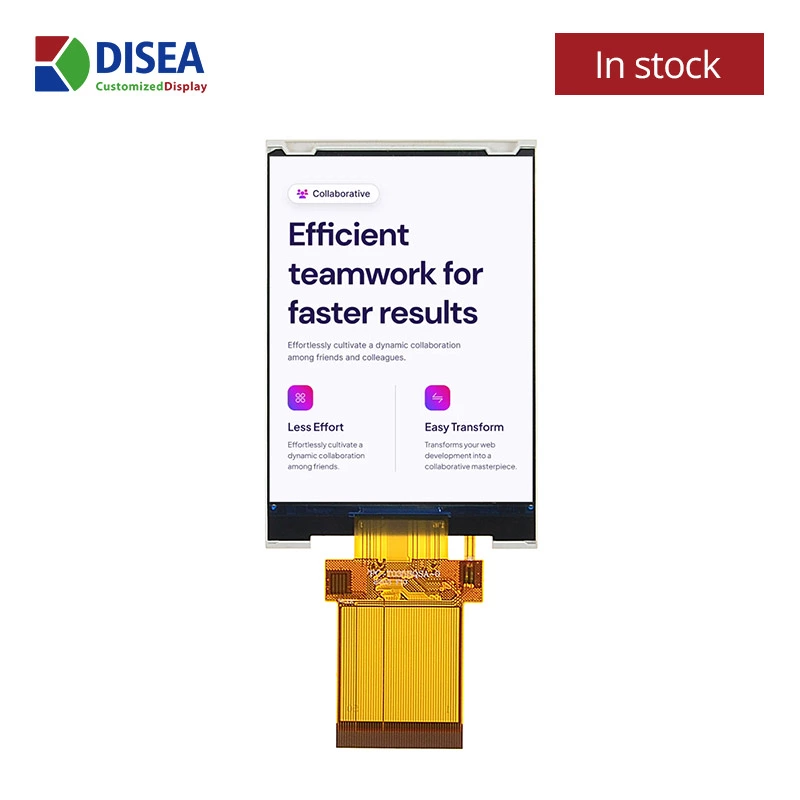

DS-T035BQSA-01
3.5"240x320IPS

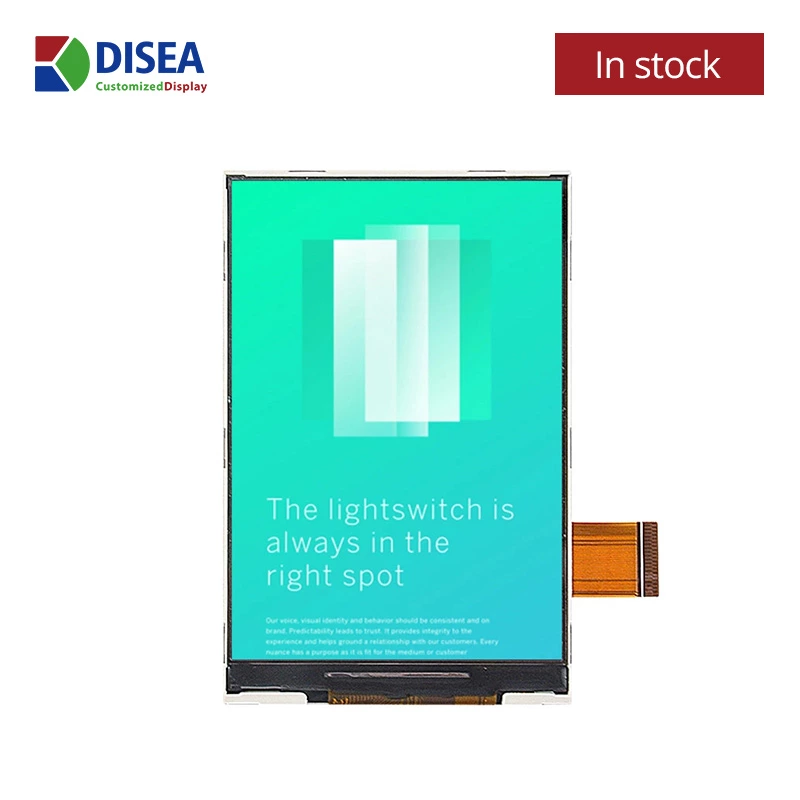

DS-T035SHI-01
3.5"320x480TN

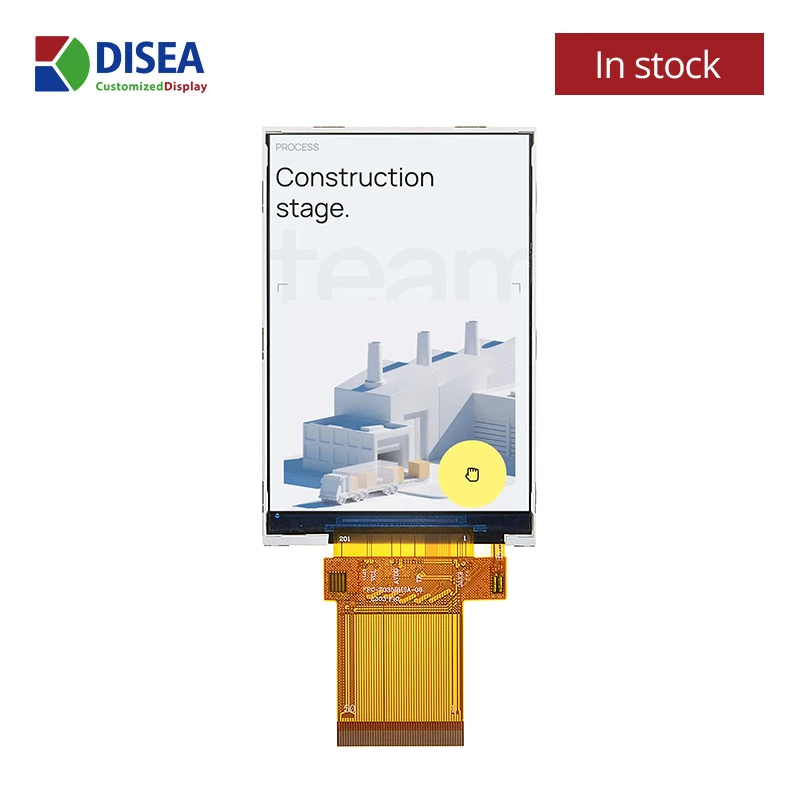

DS-T035BHSA-01
3.5"320x480IPS

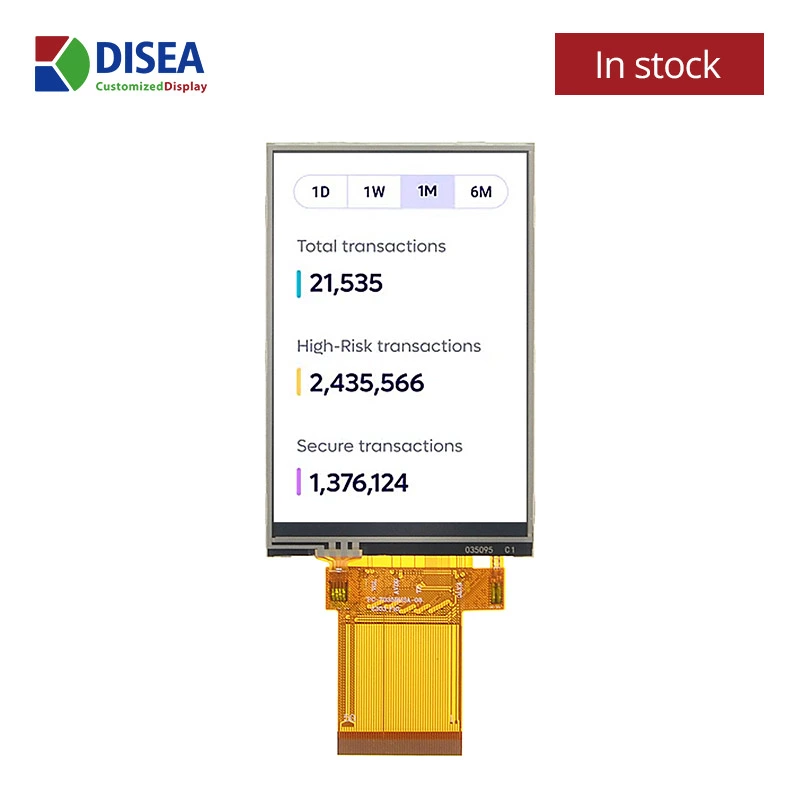

DS-T035BHSA-01P
3.5"320x480IPS
