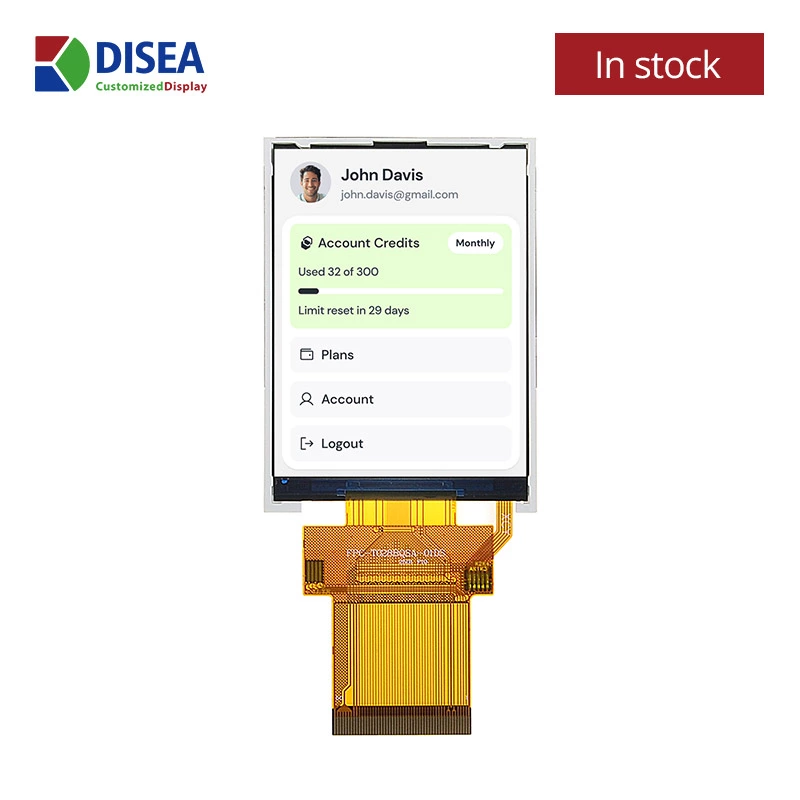

DS-T028BQSWA-01 — 2.8″ 240x320 IPS TFT LCD Module
Industrial-grade display module from DISEA’s 23,700㎡ ISO 9001:2015 factory. Datasheet & samples available on request.
2.8"240x320IPS350 cd/m²Without touch
| DISEA P/N | DS-T028BQSWA-01 |
|---|---|
| Display Size | 2.8 inch |
| Resolution | 240x320 |
| LCD Type / Shape | IPS |
| Luminance | 350 cd/m² |
| Module Interface | RGB/MCU/SPI |
| LCD Driver IC | ST7789V |
| Touch Option | Without touch |
| Active Area (mm) | 43.20x57.60 |
| Outline Dim. (mm) | 50.00x69.20x2.35 |
| Operating Temp. (°C) | -30-85 |
| Storage Temp. (°C) | -30-85 |
Similar Modules in Under 3 inch

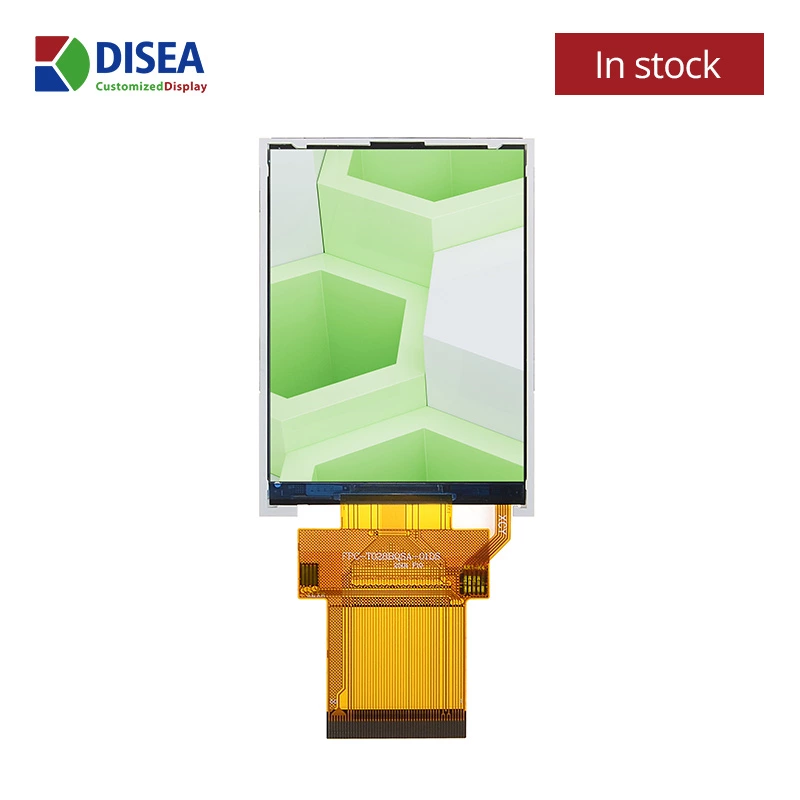

DS-T028BQSA-01
2.8"240x320IPS
DS-T028BQSA-01P
2.8"240x320IPS

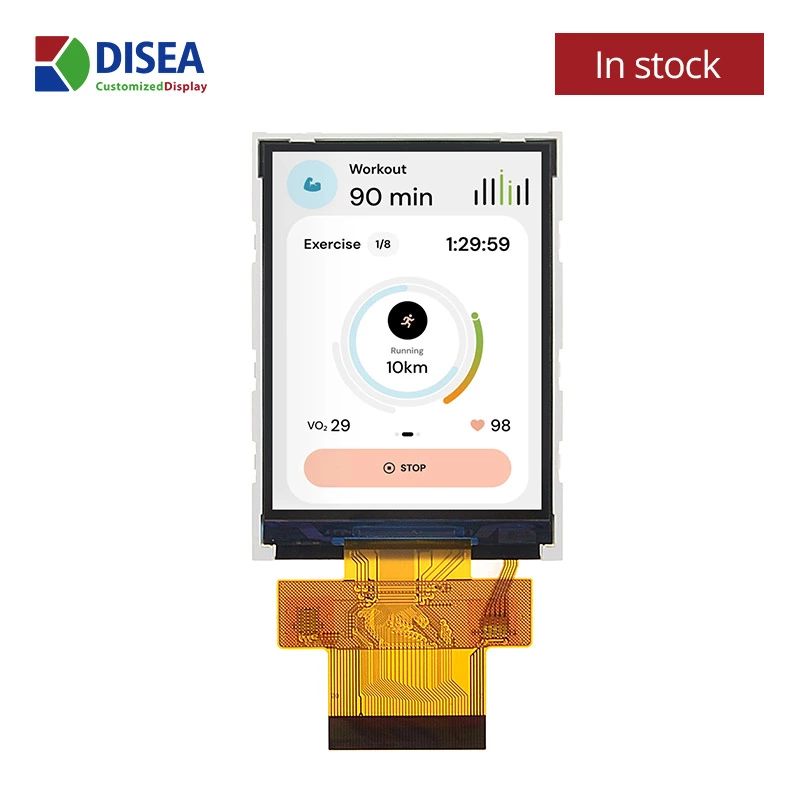

DS-T028GQSW-01
2.8"240x320TN

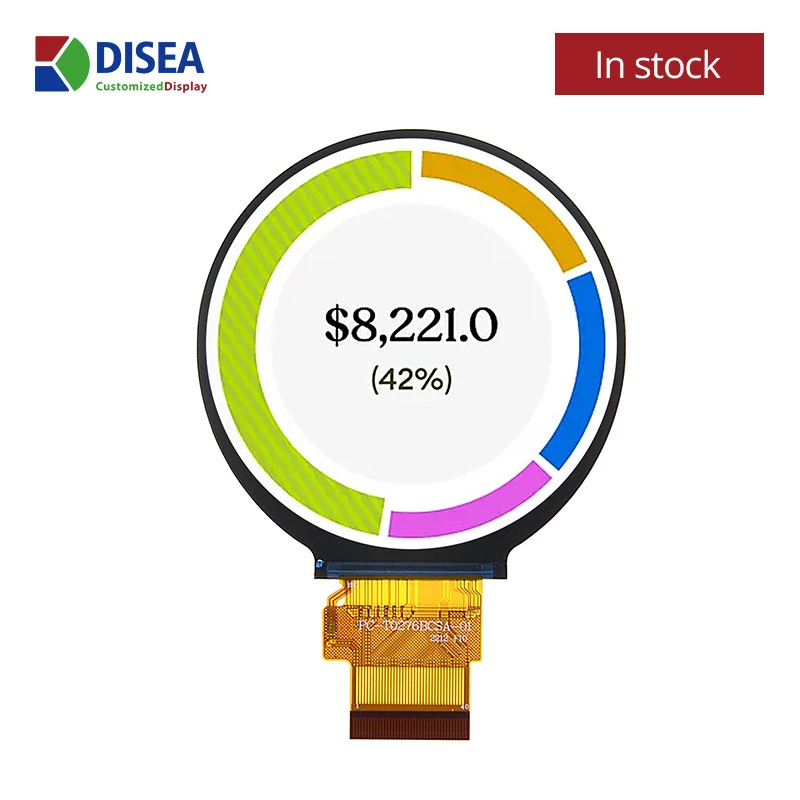

DS-T0276BCSA-01
