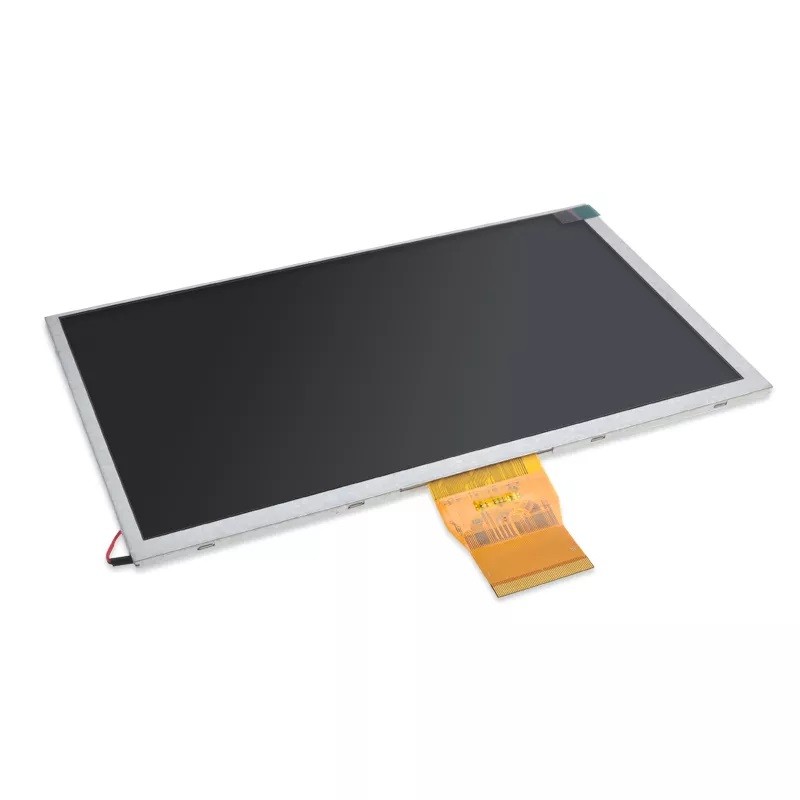

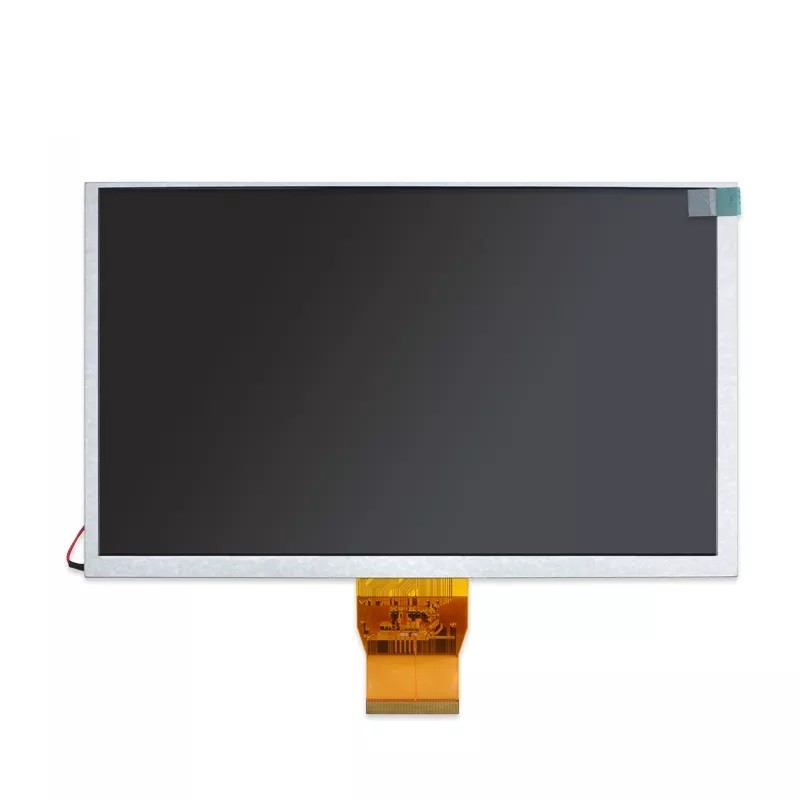

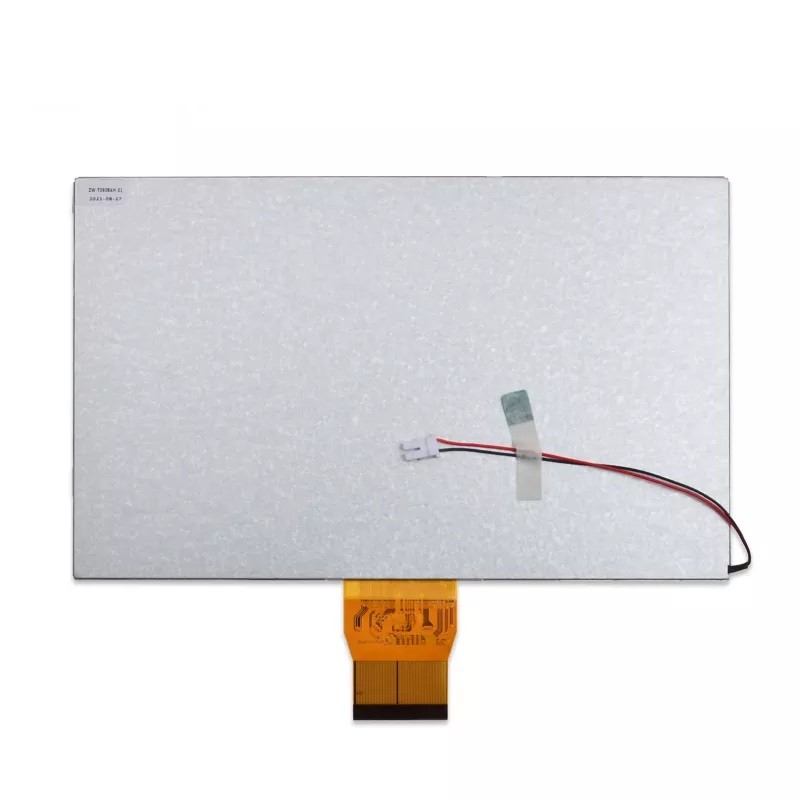

首页 产品展示 7英寸-10.4英寸 TFT LCD 9英寸 LCD RG090BAH-01 9英寸1024x600 TFT LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 9.0 | inch |
| Resolution | 1024*600 | dots |
| Pixel pitch | 0.192(W)x 0.190(H) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 300 | cd/m2 |

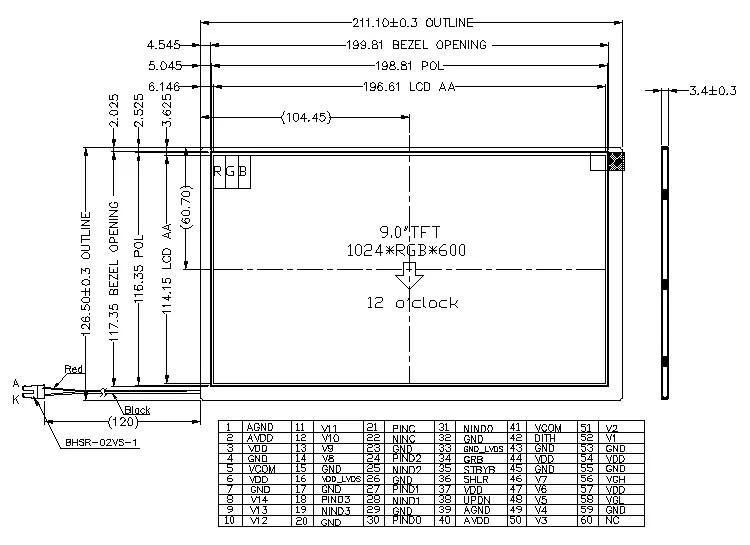

| LCM (W * H * D) | 211.10X126.50X3.4 | mm |
| Active Area (W * H ) | 196.61x114.15 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 4S7P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | LVDS | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.2M | - |
| LCM Driver IC | HX8282A+HX8696 | - |
