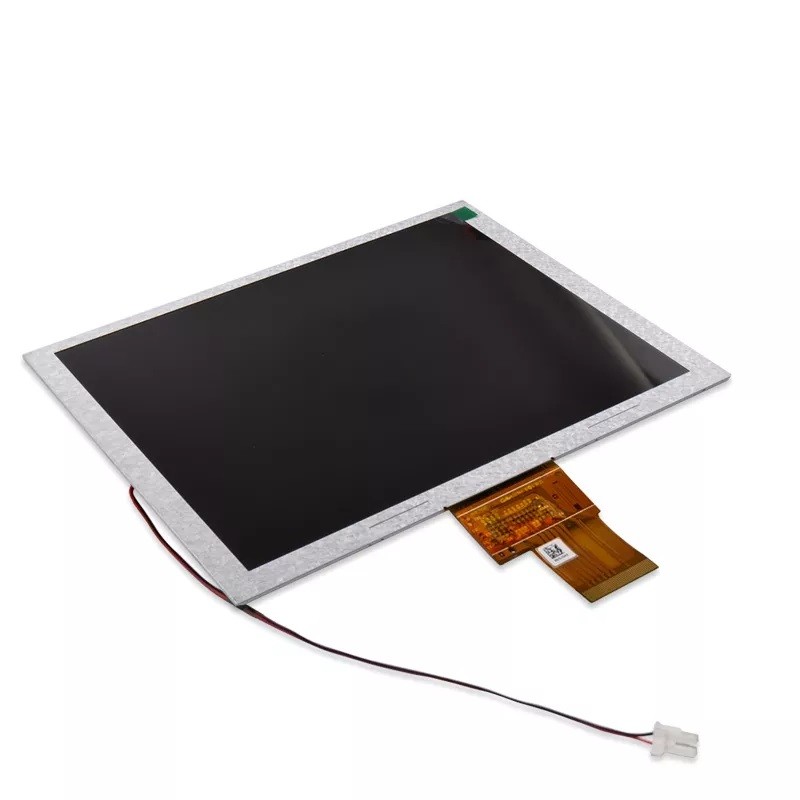

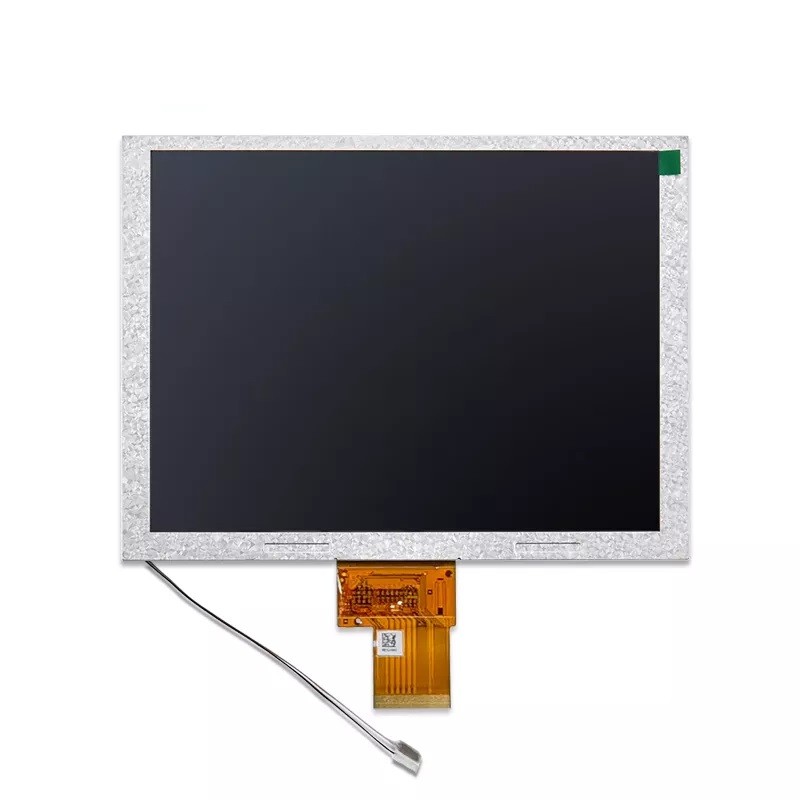

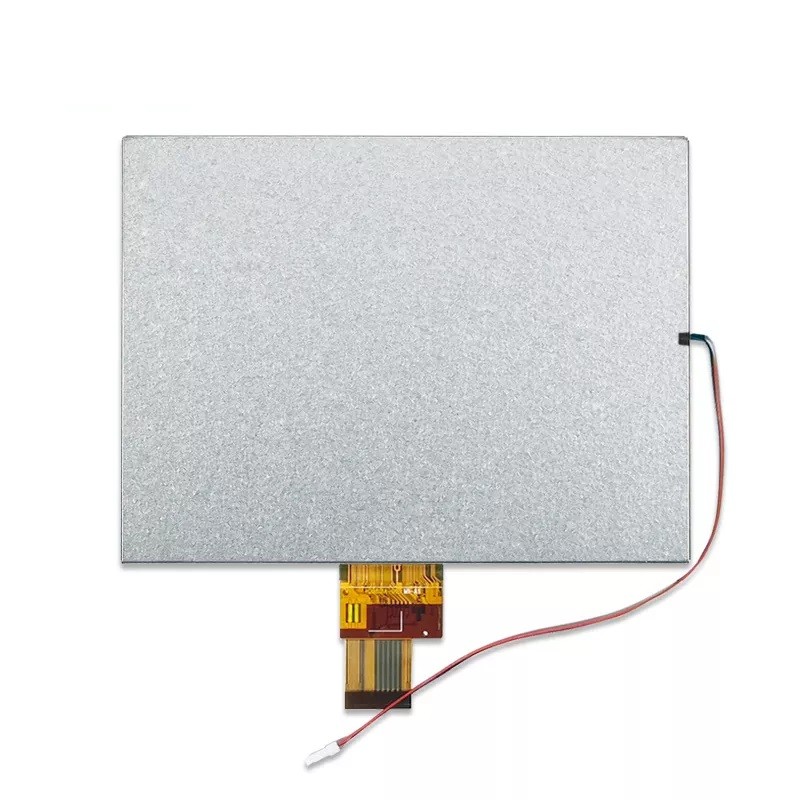

首页 产品展示 7英寸-10.4英寸 TFT LCD 8英寸 LCD RG080QXH-17 8英寸1024*(RGB)*768
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 8.0 | inch |
| Resolution | 1024×768 | dots |
| Pixel pitch | 0.1582(W)x 0.1582(H) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 300 | cd/m2 |

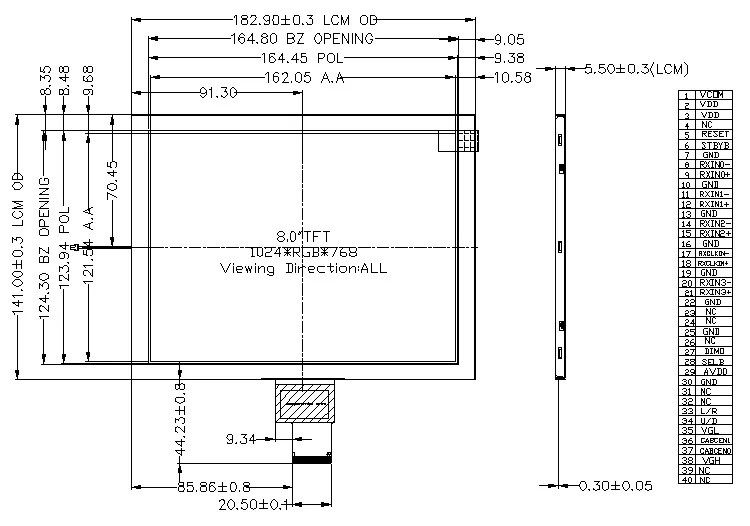

| LCM (W * H * D) | 182.90X141.00X5.50 | mm |
| Active Area (W * H ) | 162.05X 121.54 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S9P-LED | pcs |
| Operation temperature | -10~+50 | ℃ |
| Storage temperature | -20~+60 | ℃ |
| Interface | LVDS/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.0 | V |
| Color Depth | 16.7M | - |
