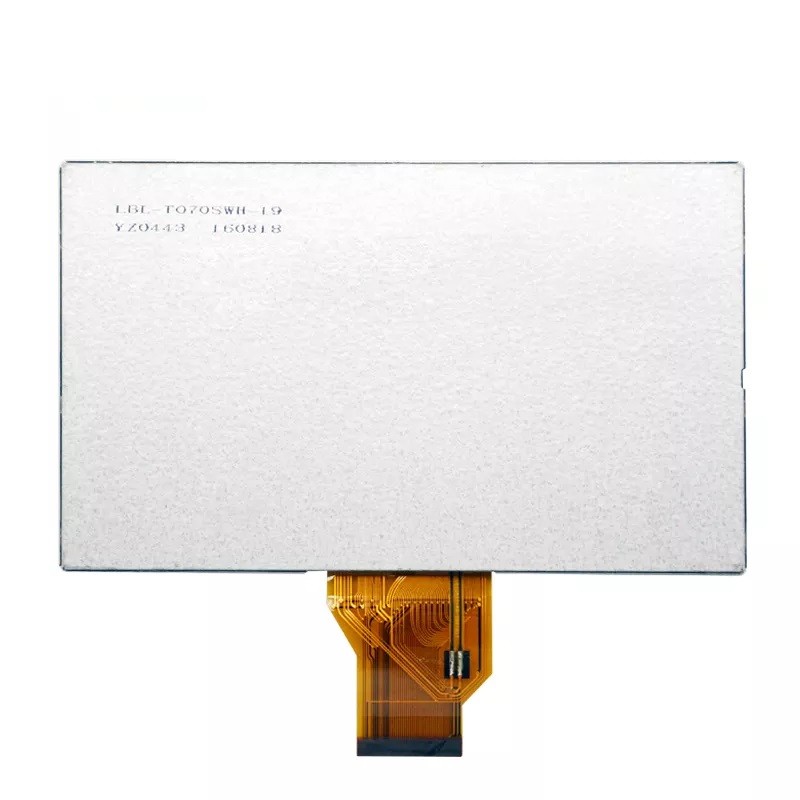

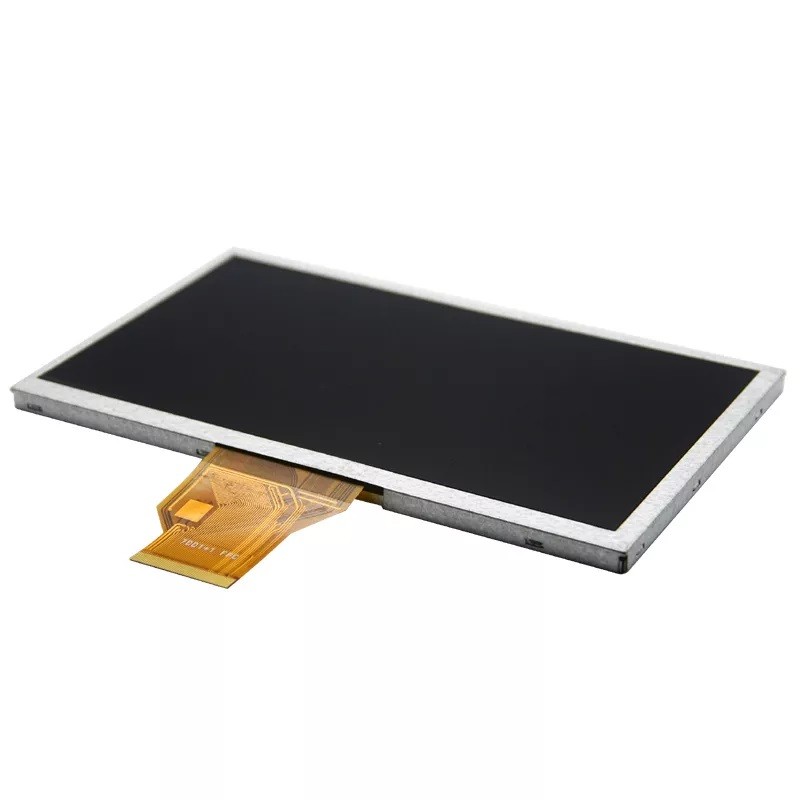

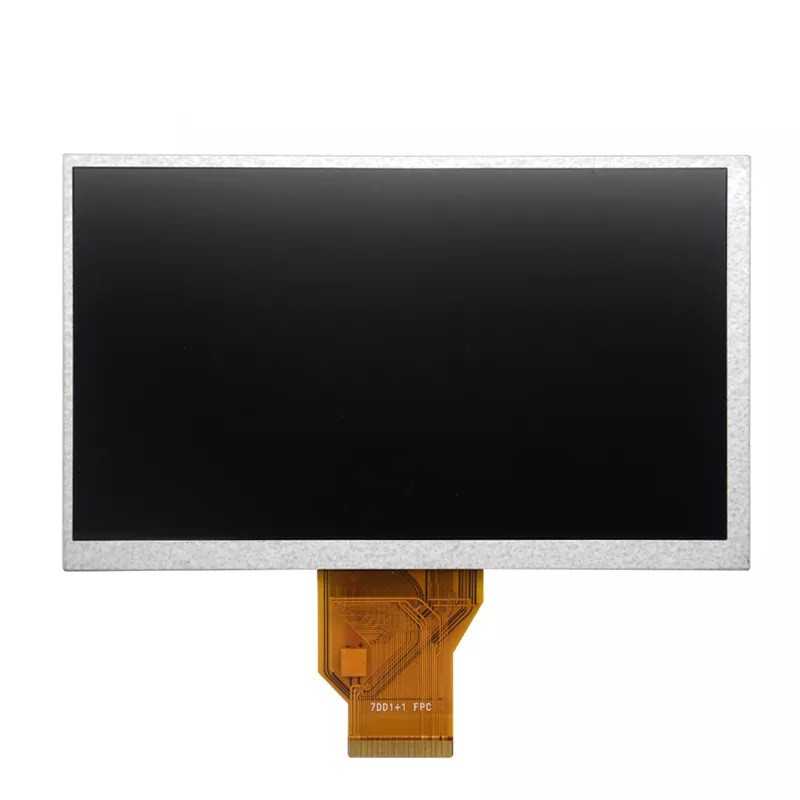

首页 产品展示 7英寸-10.4英寸 TFT LCD 7英寸 LCD RG070SWH-19 7英寸 800*480 TFT LCD显示模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 7 | inch |
| Resolution | 800*480 | dots |
| Pixel pitch | 0.1926(W)x 0.1790(H) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 800 | cd/m2 |
| LCM (W * H * D) | 165.00*100.00*5.70 | mm |
| Active Area (W * H ) | 154.08*85.92 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 30-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB-24bit/50PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9 | V |
| Color Depth | 262K | - |
