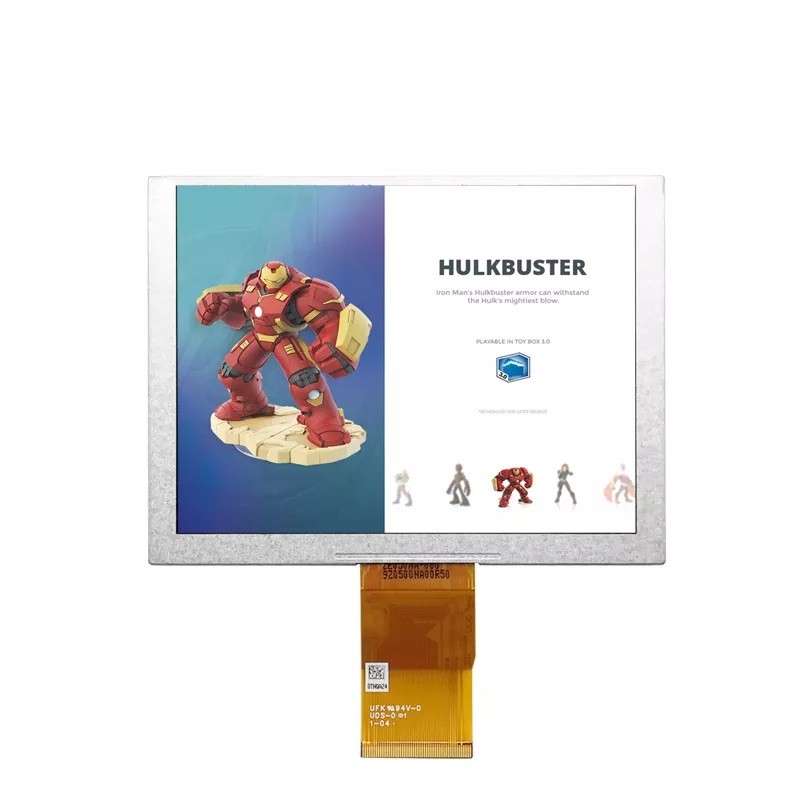

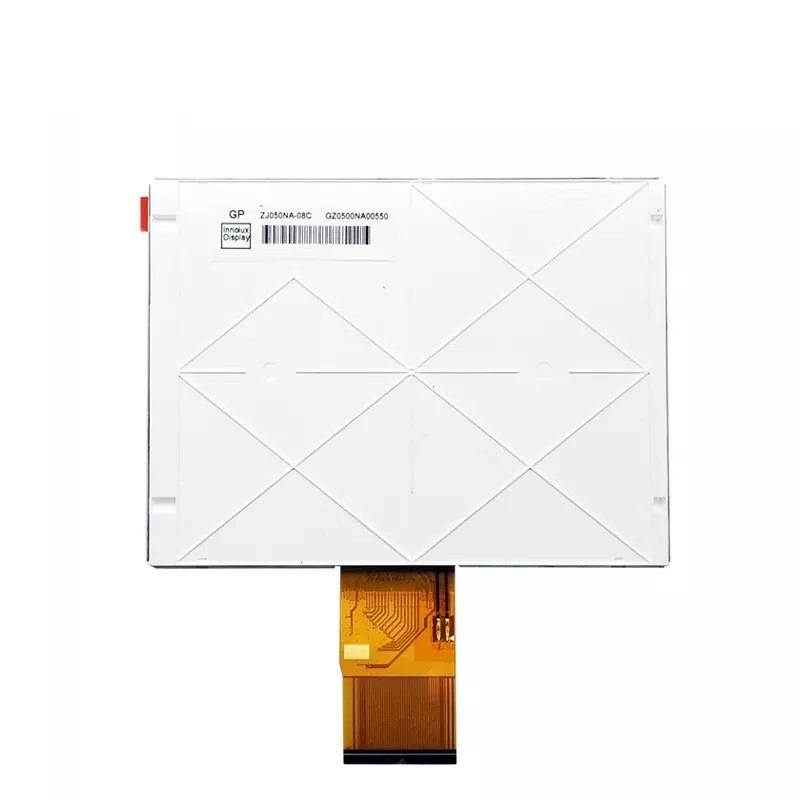

RG050QGH-19 5英寸 640x480 VGA LCD模块

  • 产品项目 : RG050QGH-19
  • 类别: 5英寸 LCD
  • 分辨率: 640*(RGB)*480
  • 亮度: 280nits
  • LCM (W * H * D): 117.65*88.43*5.70mm
  • LCM驱动IC: HX8292+HX8664
  • 询价   邮件
产品描述:
Feature Specification Unit
Brand Ronen -
Size 5 inch
Resolution 640*480 dots
Pixel pitch 0.1587(H)x0.1587(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 280 cd/m2
LCM (W * H * D) 117.65*88.43*5.70 mm
Active Area (W * H ) 101.57*76.18 mm
With /Without TP Without TP -
LED Numbers 5S3P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB888/50PIN -
LCM Power Supply 3.3 V
LED  Power Supply 15.0 V
Color Depth 16,7M -
LCM Driver IC HX8292+HX8664 -
