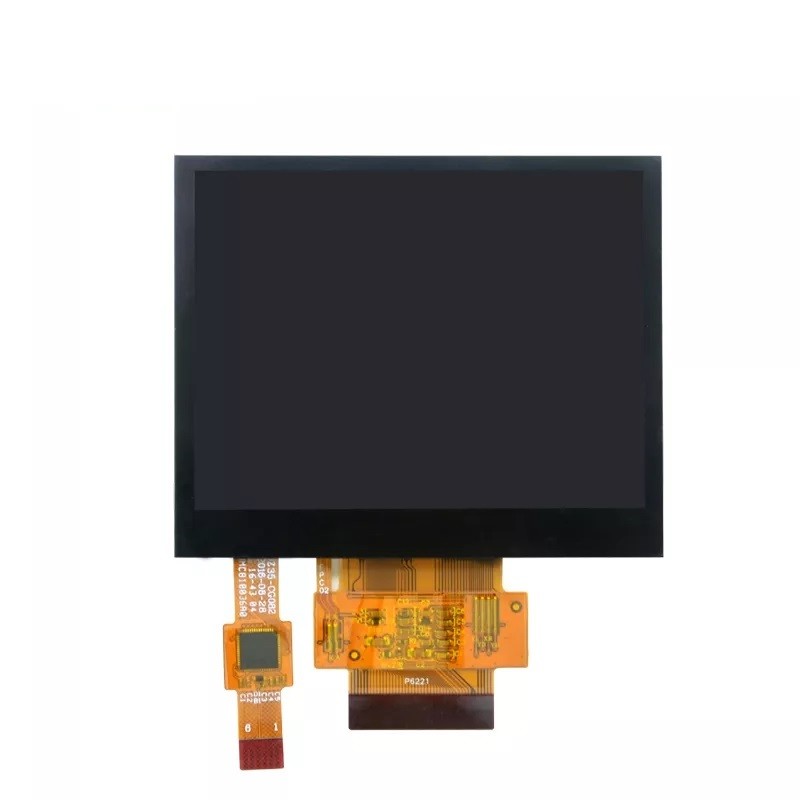

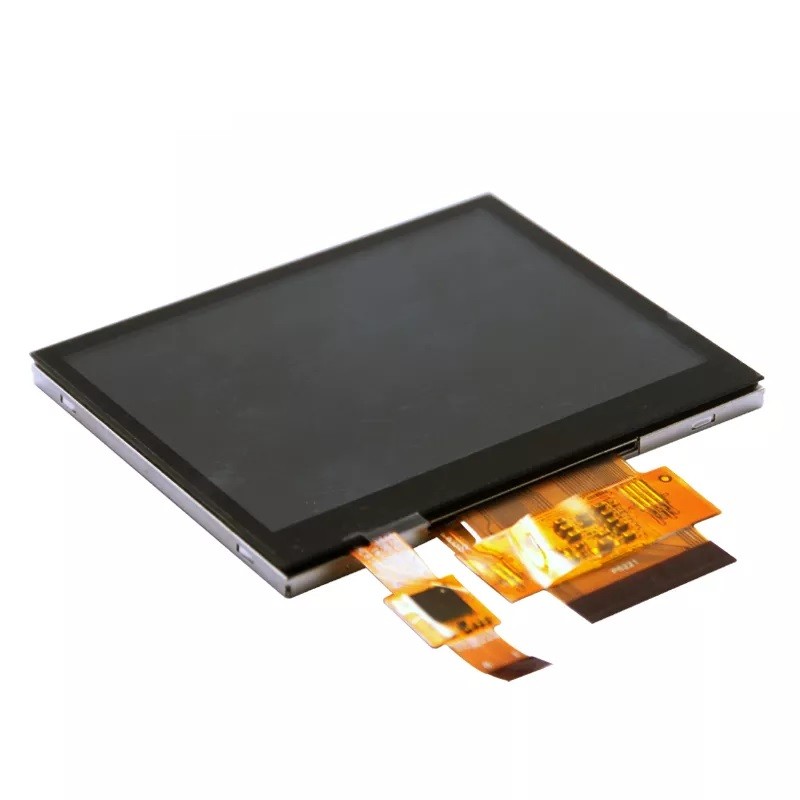

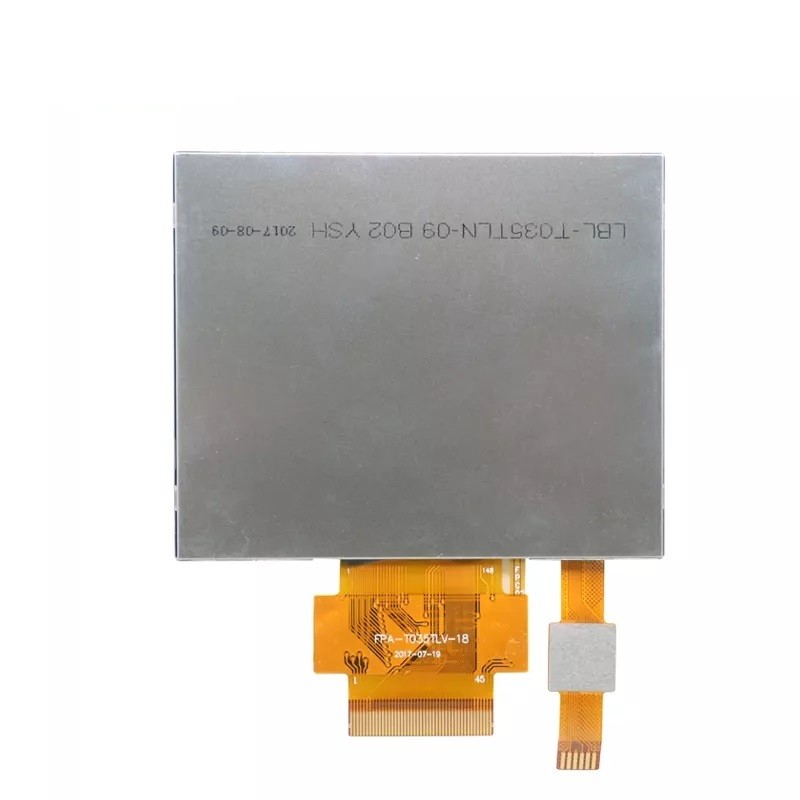

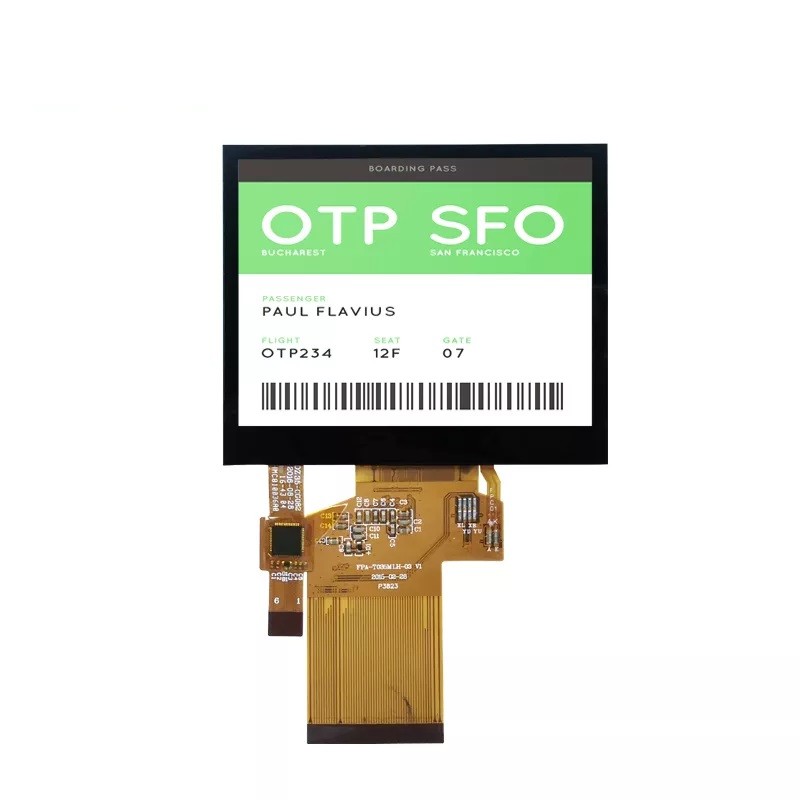

首页 产品展示 3英寸-4英寸 TFT LCD 4英寸 LCD RG040HCSA-03 4英寸 480x480 IPS LCD模块
| Feature | Specification | Unit |
|---|---|---|
| Brand | Ronen | - |
| Size | 3.95 | inch |
| Resolution | 480*480 | dots |
| Pixel pitch | 0.219(H)*0.219(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 400 | cd/m2 |
| LCM (W * H * D) | 74.83*78.98*2.02 | mm |
| Active Area (W * H ) | 71.86*70.18 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 4S2P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 18BIT RGB | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 12.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ST7701S | - |
