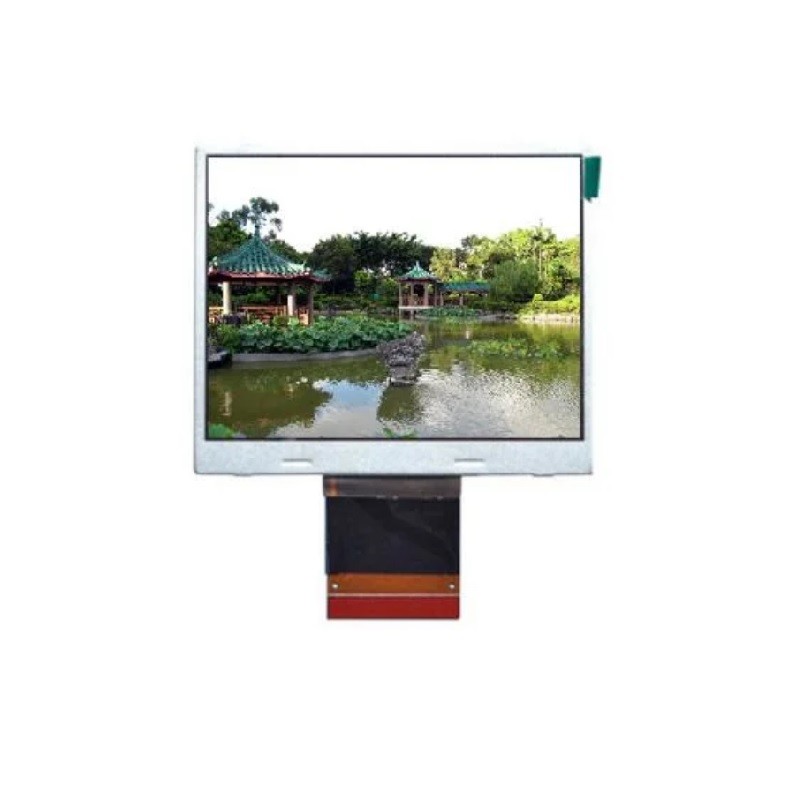

首页 产品展示 3英寸-4英寸 TFT LCD 3.5英寸 LCD RG035FLT-22 3.5英寸 TFT LCD 320x240 1800ni
| ITEM | Standard value |
| LCD Type | TFT Transmissive |
| Driver element | A-Si TFT Active matrix |
| Number of Dots | 320*(RGB)*240 dots |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 70.08 *52.56 mm |
| Viewing Direction | 6 O'clock |
| Driver IC | SSD2119 |
| Module Size(W*H*T) | 76.9X63.9X3.1 mm |
| Approx. Weight | TBD |
| Back Light | White LED |
| System interface | 1.8/ 9/ 16/ 18-bit 6800-series / |
| 8080-series Parallel Interface | |
| 2. Serial Peripheral Interface (SPI) | |
| 3.18-/6-bit RGB interface (DE, | |
| DOTCLK, HSYNC, VSYNC, dB[17: 0]) | |
| 4. WSYNC interface (system interface + WSYNC) |
