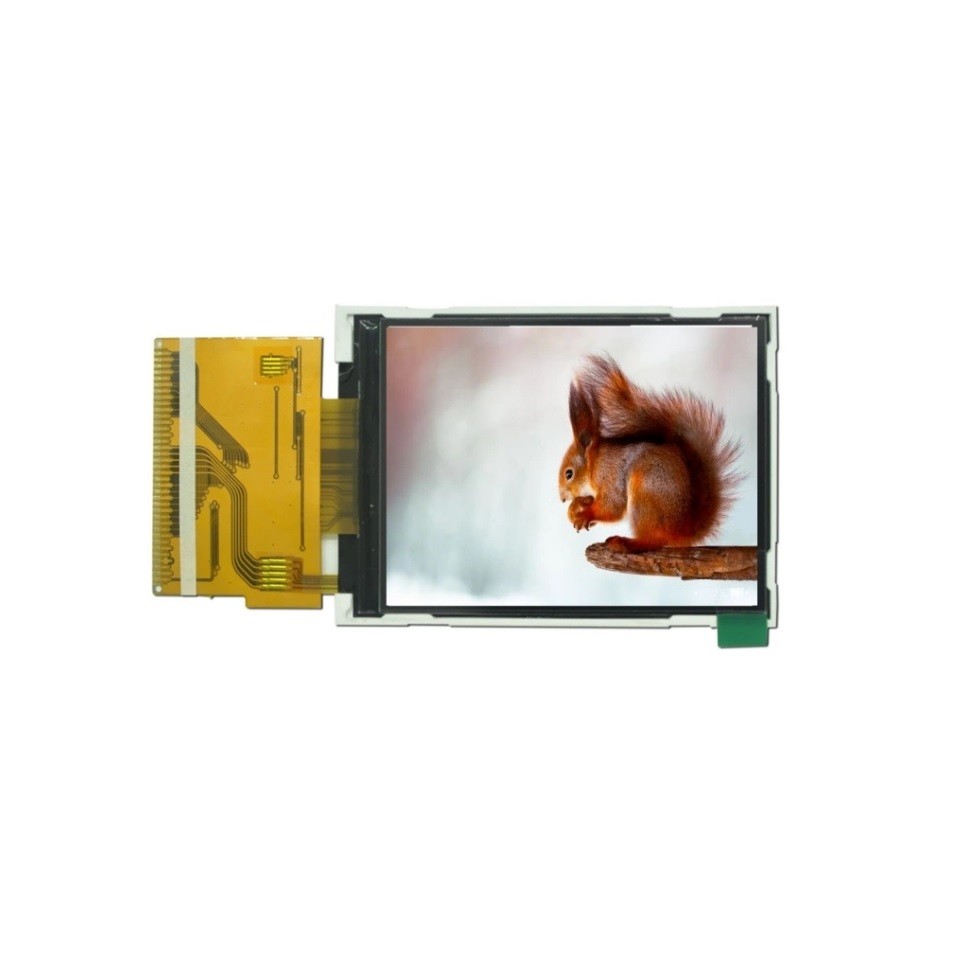

首页 产品展示 2英寸-2.8英寸 TFT LCD 2.8英寸 LCD RG028GTT-09 2.8英寸 TFT LCD 240x320 200nit
| Item | Contents |
| LCD | Type TFT - |
| Display color | 262K |
| Viewing Direction | 6 O'Clock |
| Gray scale inversion direction | 12 O'Clock |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |
| Module size | 50.00x69.20x2.45 mm |
| Active Area(W×H) | 43.20x57.60 mm |
| Number of Dots | 240x320 dots |
| Controller | ILI9341v |
| Power Supply Voltage | 2.8 V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | 1X4-LEDs (white) pcs |
| Interface | RGB + MCU |
